GARR GARR 83807

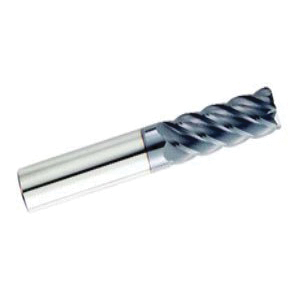

GARR 83807 855RA Center Cutting High Performance Single End Mill, 6 mm Dia Cutter, 1 mm Corner Radius, 19 mm Length of Cut, 5 Flutes, 6 mm Dia Shank, 65 mm OAL, AlTiN/X.CEED Coated
Invoice description:
Em 6x19locx6x65mm Cr1 5fl Altin Hp
Factory Order
GARR End Mill, Center Cutting High Performance Single End, Series: 855RA, 6 mm Diameter Cutter, 1 mm Corner Radius, 65 mm Overall Length, 19 mm Length of Cut, 5 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, AlTiN/X.CEED Coated
Features
- High performance milling in steels, stainless steel and exotics
- Rigid work holding, machine stability and part integrity are critical
- Up to 40% faster than uncoated
- Improved finishes in titanium
- Heavy core
- An ideal tool for finishing applications after using the VRX end mill
- Radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Corner Radius1 mm
Cutter Diameter6 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeSpiral
Helix Angle45 deg
Length of Cut19 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes5
Overall Length65 mm
Series855RA
Shank Diameter6 mm
Shank TypeRound
TypeCenter Cutting High Performance Single End
Additional Information
Country of OriginUS
Specification Sheet
