GARR GARR 80420

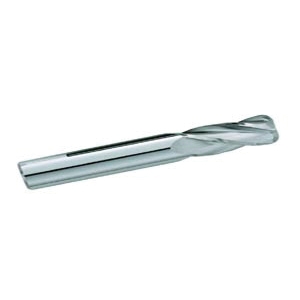

GARR 80420 230R Center Cutting Single End Standard Length End Mill, 5/8 in Dia Cutter, 0.09 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-1/2 in OAL, TiAlN Coated
Invoice description:
Em 5/8x1-1/4locx5/8x 3-1/2 Cr0.09 4fl Tialn
Factory Order
GARR End Mill, Center Cutting Single End Standard Length, Series: 230R, 5/8 in Diameter Cutter, 0.09 in Corner Radius, 3-1/2 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, TiAlN Coated
Features
- Extremely versatile
- For stronger corners and part radius
- Radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
Corner Radius0.09 in
Cutter Diameter5/8 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1-1/4 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length3-1/2 in
Series230R
Shank Diameter5/8 in
Shank TypeRound
TypeCenter Cutting Single End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
