GARR GARR 79630

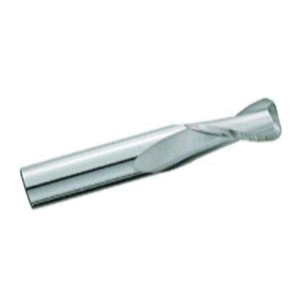

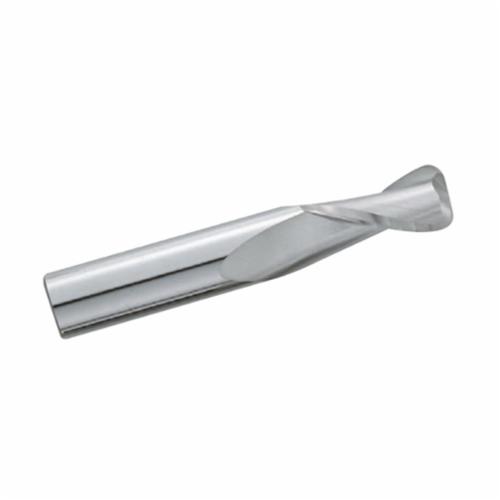

GARR 79630 220R Center Cutting Single End Standard Length End Mill, 3/4 in Dia Cutter, 1/4 in Corner Radius, 1-1/2 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 4 in OAL, Uncoated

Invoice description: Em 3/4x1-1/2locx3/4x4cr4 3834 2fl N/c

UNSPSC: 27112803
Manufacturer PN: 79630
$169.62 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Single End Standard Length, Series: 220R, 3/4 in Diameter Cutter, 1/4 in Corner Radius, 4 in Overall Length, 1-1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, 2-1/2 in Shank Length, Submicron Grain Solid Carbide, Uncoated

  • Features

  • Extremely versatile
  • For stronger corners and part radius
  • Radius tolerance +/-0.001 in (+/-0.025 mm)

Specifications

Corner Radius1/4 in
Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1-1/2 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length4 in
Series220R
Shank Diameter3/4 in
Shank Length2-1/2 in
Shank TypeStraight
TypeCenter Cutting Single End Standard Length

Additional Information

Country of OriginUS
