GARR GARR 61516

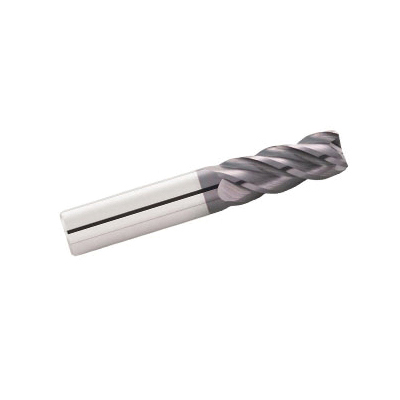

GARR 61516 VRX Center Cutting High Performance Corner Radius End Mill, 25 mm Dia Cutter, 3 mm Corner Radius, 38 mm Length of Cut, 4 Flutes, 25 mm Dia Shank, 100 mm OAL, AlTiN Coated
Invoice description:
Em 25x38locx25x100mmcr3 4fl Altin Hp
Factory Order
GARR Corner Radius End Mill, Center Cutting High Performance, Series: VRX, 25 mm Diameter Cutter, 3 mm Corner Radius, 100 mm Overall Length, 38 mm Length of Cut, 4 Flutes, Spiral Flute, 25 mm Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Plain Shank, Solid Submicron Grain Carbide, AlTiN Coated
Features
- The standard in high performance milling
- Reduces vibration for more aggressive machining
- For stainless steel, inconel, pH materials, titanium and tool steel
- +0.001 to 0.001 in (+0.025 to 0.025 mm) corner radius tolerance
Specifications
ApplicationTrochoidal/Dynamic Milling
Corner Radius3 mm
Cutter Diameter25 mm
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut38 mm
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length100 mm
SeriesVRX
Shank Diameter25 mm
Shank TypePlain
TypeCenter Cutting High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
Specification Sheet
