GARR GARR 60140

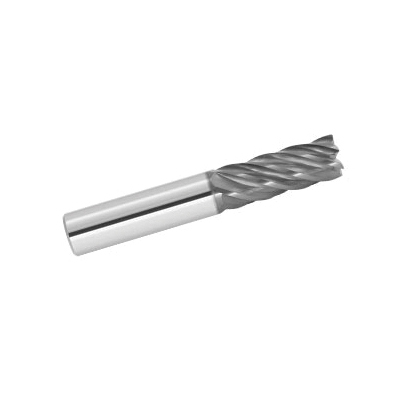

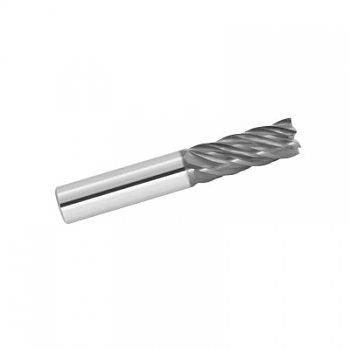

GARR 60140 VR6 Center Cutting High Performance Corner Radius End Mill, 5/8 in Dia Cutter, 0.015 in Corner Radius, 1-1/4 in Length of Cut, 6 Flutes, 5/8 in Dia Shank, 3-1/2 in OAL, AlTiN Coated
Invoice description:
Em 5/8x1-1/4locx5/8x 3-1/2 Cr0.015 6fl Altin Hp
Factory Order
GARR Corner Radius End Mill, Center Cutting High Performance, Series: VR6, 5/8 in Cutter Dia, 0.015 in Corner Radius, 3-1/2 in Overall Length, 1-1/4 in Length of Cut, 6 Flutes, Spiral Flute, 5/8 in Shank Dia, 37 deg Helix Angle, Solid Submicron Grain Carbide, AlTiN Coated
Features
- 6-flutes for better finish and longer tool life
- Reduces vibration for more aggressive machining resulting in less cycle times and greater productivity
- Staggered flute geometry
- Up to 15% radial stepovers
- Up to 4XD axial depths
Specifications
ApplicationTrochoidal/Dynamic Milling
Corner Radius0.015 in
Cutter Diameter5/8 in
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle37 deg
Length of Cut1-1/4 in
MaterialSolid Submicron Grain Carbide
Number of Flutes6
Overall Length3-1/2 in
SeriesVR6
Shank Diameter5/8 in
TypeCenter Cutting High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
