YG-1 YG1 T2243

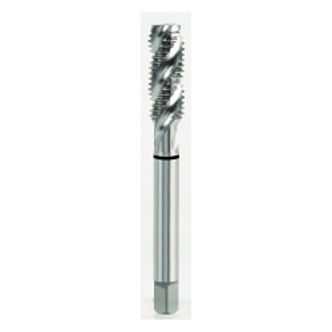

YG-1 T2243 High Performance Modified Bottoming Chamfer Spiral Flute Standard Combination Tap, 2B Class of Fit, 0.276 in L Drill, H3 Thread Limit, #6-32 UNC Thread
Factory Order
YG-1 Combination Tap, High Performance Modified Bottoming Chamfer Spiral Flute Standard, Series: T2 Series, Measurement System: Imperial, Class of Fit: 2B, 0.1095 in Drill, #6-32 UNC Thread, 0.276 in Drill Length, H3 Thread Limit, 2 in Overall Length, 3 Flutes, Right Hand Cutting, Square Shank, 0.141 in Shank Dia, 0.11 in W x 0.19 in L Square Size, HSS-EX, Bright
Features
- Combo taps geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing
- Guaranteed process reliability even in less rigid machining conditions
- Prevents over and under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
- HSS-E for prevention of oversized threads
- Reduces tap breakage, ensures accurate thread depth
- Eliminates loose threads due to tap overfeeding
- Improves thread quality and chip evacuation
- Allows tapping of many metals including stainless steel and steels
- Eliminates bird nest around tap shank
Specifications
ApplicationMulti-Purpose and Blind Hole Applications
Class of Fit2B
Cutting DirectionRight Hand
Drill Length0.276 in
Drill Size0.1095 in
Finish/CoatingBright
MaterialHSS-EX
Measurement SystemImperial
Number of Flutes3
Overall Length2 in
SeriesT2 Series
Shank Diameter0.141 in
Shank TypeSquare
Square Size0.11 in W x 0.19 in L
Thread LimitH3
Thread Size#6-32 UNC
TypeHigh Performance Modified Bottoming Chamfer Spiral Flute Standard
