YG-1 YG1 R7D20

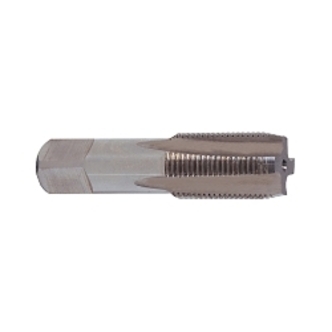

YG-1 R7D20 High Performance Square Shank Pipe Tap, Taper Thread Profile, 0 deg Helix, 2-11-1/2 Thread
Invoice description:
Tap 2-11*1/2 7flt Straig Ht Npt/f Bright Finish
UNSPSC:
23241615
Manufacturer PN: R7D20
Factory OrderEstimated to ship in 14 days
--Price Unavailable--
YG-1 Pipe Tap, High Performance Square Shank, Series: R7 Series, Measurement System: Imperial, 2-11-1/2, NPTF, Taper Thread Profile, 0 deg Helix Angle, 2P-3P Modified Bottoming Chamfer, 1-3/4 in Thread Length, 4-1/4 in Overall Length, 7 Flutes, 1-7/8 in Shank Dia, 2-3/16 in Tap Drill, 1.406 in Square Size, HSSE-V3, Bright
Features
- HSS-E for prevention of oversized threads
- These taps meet both NPT and FNPT standard
Specifications
ApplicationBlind Hole and Through Hole Applications
Chamfer Type2P-3P Modified Bottoming
Finish/CoatingBright
Helix Angle0 deg
MaterialHSSE-V3
Measurement SystemImperial
Number of Flutes7
Overall Length4-1/4 in
SeriesR7 Series
Shank Diameter1-7/8 in
Square Size1.406 in
Tap Drill Size2-3/16 in
Thread Length1-3/4 in
Thread ProfileTaper
Thread Size2-11-1/2
Thread StandardNPTF
TypeHigh Performance Square Shank
Additional Information
Standards/ApprovalANSI Specified|USCTI 311|PROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of OriginKR
