YG-1 YG1 DLGP513106

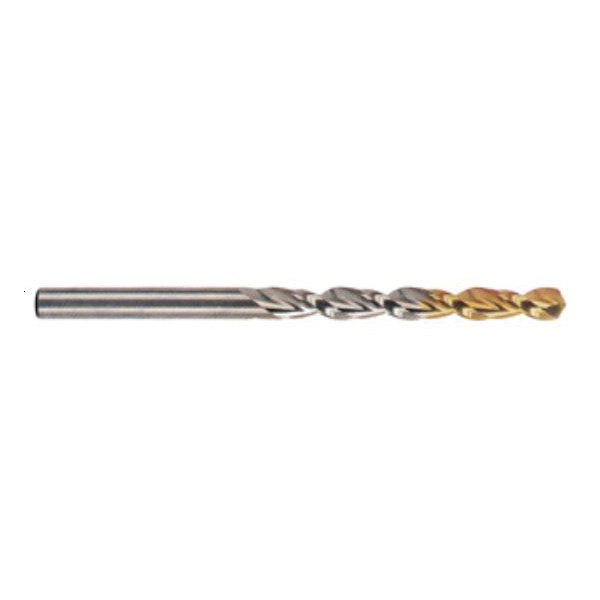

YG-1 DLGP513106 Worm Pattern Jobber Length Drill Bit, F Drill - Letter, 0.257 in Drill - Decimal Inch, 130 deg Point, M35 HSS-Co 5%, Gold-P/TiN Coated

UNSPSC: 23241606
Manufacturer PN: DLGP513106
$3.85 EA
Factory Order
Estimated to ship in 14 days
QTY:


YG-1 Jobber Length Drill Bit, Worm Pattern, Series: DLGP513, Imperial, F Drill - Letter, 0.257 in Drill - Decimal Inch, 4-1/8 in Overall Length, 2-7/8 in Cutting Depth, Parabolic Flute, 2-7/8 in Flute Length, 1/4 in Shank, Straight Shank, 130 deg Point, Split Point, Right Hand Cutting Direction, M35 HSS-Co 5% Cutting Edge, M35 HSS-Co 5%, Gold-P/TiN Coated

  • Features

  • Improved chip removal in most materials, especially in deep drilling applications
  • Bright body TiN coating on working part

Specifications

ApplicationFor deep drilling applications
Cutting Depth2-7/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialM35 HSS-Co 5%
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.257 in
Drill Size - LetterF
FinishGold-P/TiN Coated
Flute Length2-7/8 in
Flute TypeParabolic
MaterialM35 HSS-Co 5%
Overall Length4-1/8 in
Point Angle130 deg
Point TypeSplit
SeriesDLGP513
Shank Size1/4 in
Shank TypeStraight
TypeWorm Pattern
