YG-1 YG1 D1GP113003

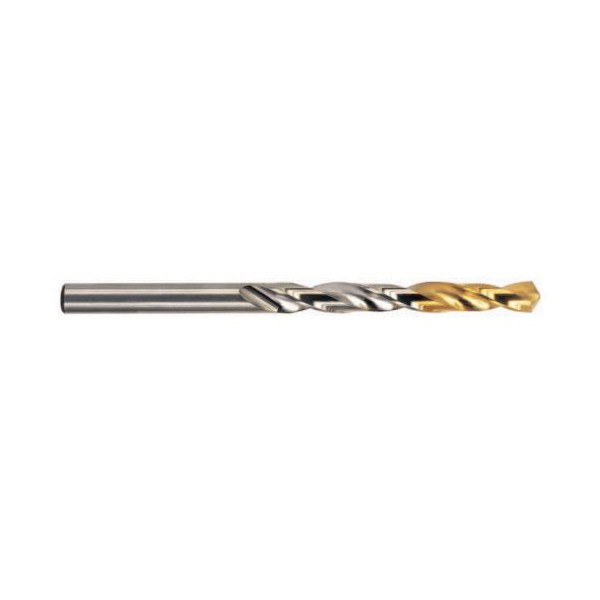

YG-1 D1GP113003 D1GP182 Jobber Length Drill Bit, 3/64 in Drill - Fraction, 0.0469 in Drill - Decimal Inch, 135 deg Point, HSS, Gold-P/TiN Coated
Invoice description:
D1gp113003 Jobber Length Dr Ill 3/64 In Dia
Factory Order
YG-1 Jobber Length Drill Bit, Series: D1GP182, Imperial, 3/64 in Drill - Fraction, 0.0469 in Drill - Decimal Inch, 1-3/4 in Overall Length, 3/4 in Cutting Depth, Spiral Flute, 3/4 in Flute Length, 3/64 in Shank, Straight Shank, 135 deg Point, Normal Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Gold-P/TiN Coated, Applicable Materials: Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
Specifications
Applicable MaterialsAlloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
Cutting Depth3/4 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0469 in
Drill Size - Fraction3/64 in
FinishGold-P/TiN Coated
Flute Length3/4 in
Flute TypeSpiral
MaterialHSS
Overall Length1-3/4 in
Point Angle135 deg
Point TypeNormal
SeriesD1GP182
Shank Size3/64 in
Shank TypeStraight
Additional Information
Standards/ApprovalANSI Specified
