YG-1 YG1 DLGP195127

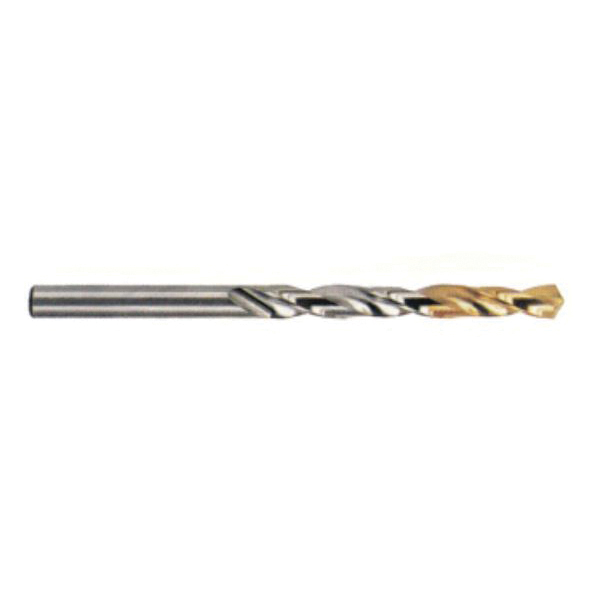

YG-1 DLGP195127 Jobber Length Drill Bit, 12.7 mm Drill - Metric, 0.5 in Drill - Decimal Inch, 135 deg Point, HSS-Co 5%, Gold-P/TiN Coated
Invoice description:
Dlgp195127 Metric Jobber Le Ngth Drill 12.7
Factory Order
YG-1 Jobber Length Drill Bit, Series: DLGP195, Metric/Imperial, 12.7 mm Drill - Metric, 0.5 in Drill - Decimal Inch, 151 mm Overall Length, 101 mm Cutting Depth, Spiral Flute, 101 mm Flute Length, 12.7 mm Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS-Co 5% Cutting Edge, HSS-Co 5%, Gold-P/TiN Coated, Applicable Materials: Cast Steel Alloyed and Non-Alloyed, Graphite, Gray Cast Iron, Malleable Cast Iron and Steel
Features
- Bright body, TiN coating on working area
Specifications
Applicable MaterialsCast Steel Alloyed and Non-Alloyed, Graphite, Gray Cast Iron, Malleable Cast Iron and Steel
Cutting Depth101 mm
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-Co 5%
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.5 in
Drill Size - Metric12.7 mm
FinishGold-P/TiN Coated
Flute Length101 mm
Flute TypeSpiral
MaterialHSS-Co 5%
Overall Length151 mm
Point Angle135 deg
Point TypeSplit
SeriesDLGP195
Shank Size12.7 mm
Shank TypeStraight
Additional Information
Standards/ApprovalDIN 338
