YG-1 YG1 DLGP195118

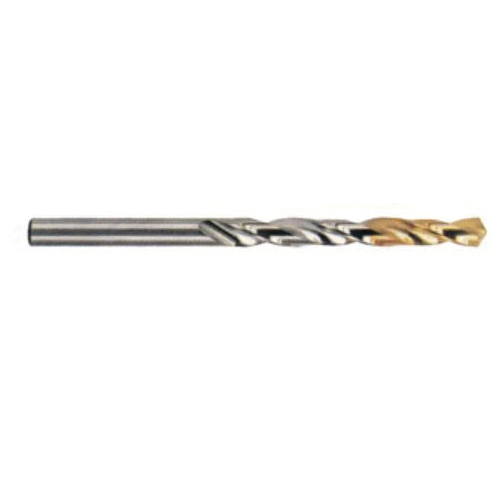

YG-1 DLGP195118 Worm Pattern Jobber Length Drill Bit, 11.8 mm Drill - Metric, 0.4645 in Drill - Decimal Inch, 135 deg Point, HSS-Co 5%, Gold-P/TiN Coated
Invoice description:
Dlgp195118 Metric Jobber Le Ngth Drill 11.8
Factory Order
YG-1 Jobber Length Drill Bit, Worm Pattern, Series: DLGP195, Metric/Imperial, 11.8 mm Drill - Metric, 0.4645 in Drill - Decimal Inch, 142 mm Overall Length, 94 mm Cutting Depth, Spiral Flute, 94 mm Flute Length, 11.8 mm Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS-Co 5% Cutting Edge, HSS-Co 5%, Gold-P/TiN Coated, Applicable Materials: Cast Steel Alloyed and Non-Alloyed, Graphite, Gray Cast Iron, Malleable Cast Iron and Steel
Features
- Bright body, TiN coating on working area
Specifications
ApplicationFor deep drilling applications
Applicable MaterialsCast Steel Alloyed and Non-Alloyed, Graphite, Gray Cast Iron, Malleable Cast Iron and Steel
Cutting Depth94 mm
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-Co 5%
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.4645 in
Drill Size - Metric11.8 mm
FinishGold-P/TiN Coated
Flute Length94 mm
Flute TypeSpiral
MaterialHSS-Co 5%
Overall Length142 mm
Point Angle135 deg
Point TypeSplit
SeriesDLGP195
Shank Size11.8 mm
Shank TypeStraight
TypeWorm Pattern
Additional Information
Standards/ApprovalDIN 338
