YG-1 YG1 DH453016F

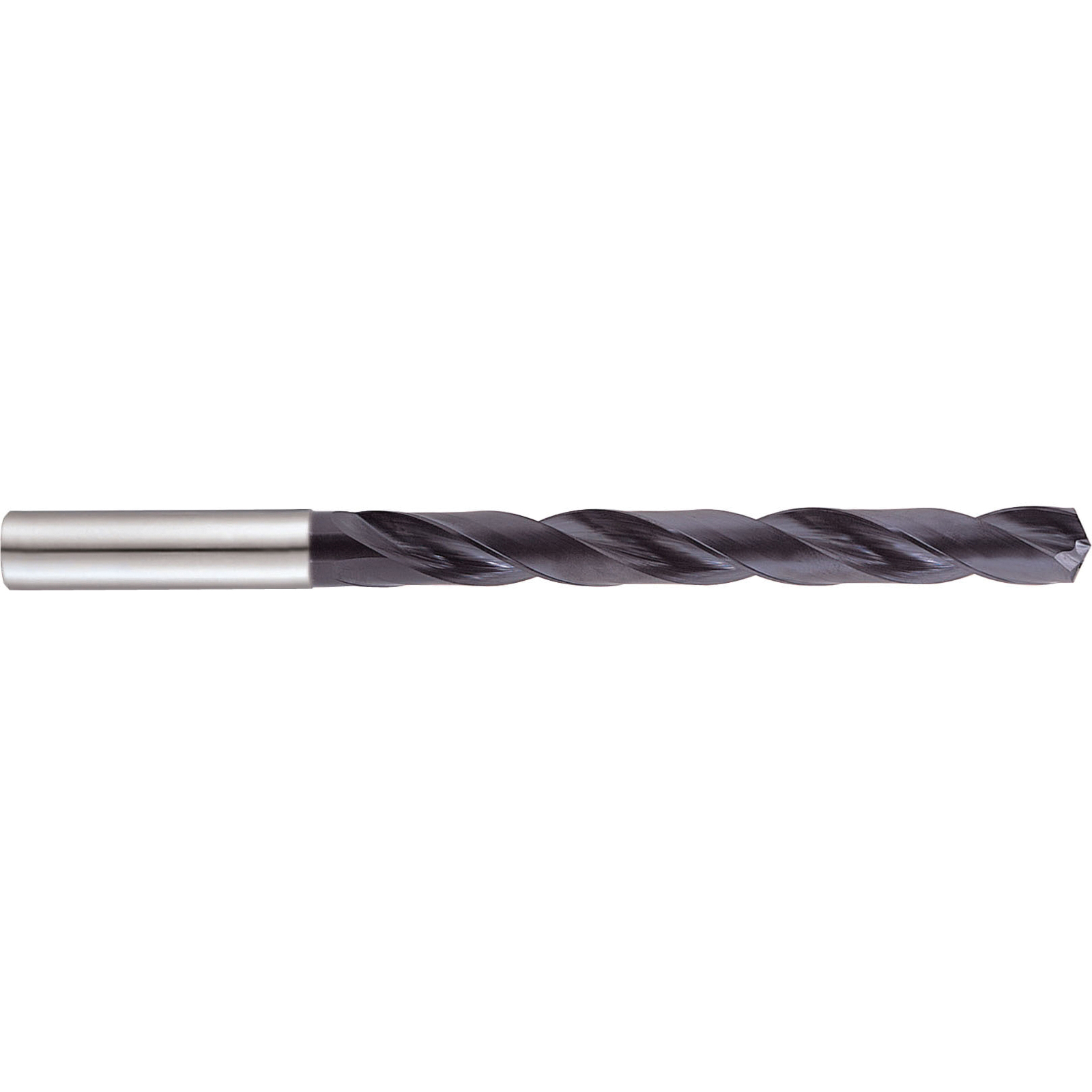

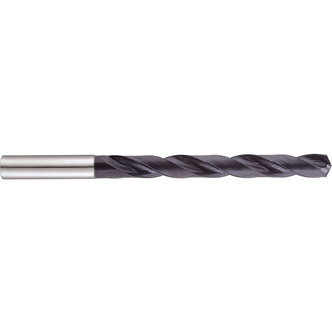

YG-1 DH453016F DH453 INOX Extra Long Length Metric Dream Drill, 6.35 mm Drill - Metric, 0.25 in Drill - Decimal Inch, 1.155 mm Drill Point, 114 mm OAL, Micrograin Solid Carbide
Invoice description:
1/4 Dh453016f 1/4 8xd Drill
In stock
(4)
YG-1 Dream Drill, Extra Long Length Metric, Series: DH453 INOX, 6.35 mm Drill Size - Metric, 0.25 in Drill Size - Decimal Inch, 114 mm Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 76 mm Flute Length, 8 mm Shank, Straight Shank, 140 deg Point, 1.155 mm Drill Point Length, Right Hand Cutting, Micrograin Solid Carbide Cutting Edge, Micrograin Solid Carbide, TiAlN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Pre-Hardened Steel and Stainless Steel, DIN 6537 Specifications Met, Yes Through Coolant (Yes/No)
Features
- Special flute shape and geometry suitable for machining stainless steel
- Excellent chip evacuation from better surface treatment
- Point R-thinning achieves superior centering and chip curling
- TiAlN coating for better surface finishes and longer tool life
Specifications
Applicable MaterialsAlloy Steel, Carbon Steel, Pre-Hardened Steel and Stainless Steel
Cutting Depth8XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicrograin Solid Carbide
Drill Point Length1.155 mm
Drill Size - Decimal Inch0.25 in
Drill Size - Metric6.35 mm
FinishTiAlN Coated
Flute Length76 mm
Flute TypeSpiral
MaterialMicrograin Solid Carbide
Number of Flutes2
Overall Length114 mm
Point Angle140 deg
SeriesDH453 INOX
Shank Size8 mm
Shank TypeStraight
Specifications MetDIN 6537
Through Coolant (Yes/No)Yes
TypeExtra Long Length Metric
