YG-1 YG1 D8182035

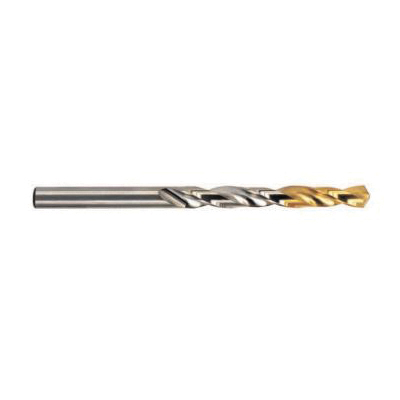

YG-1 D8182035 Jobber Length Drill Bit, 35/64 in Drill - Fraction, 0.5469 in Drill - Decimal Inch, 135 deg Point, HSS, Gold-P/TiN Coated
Invoice description:
D8182035 Jobber Length D Ril L 35/64 In Dia X
Factory Order
YG-1 Jobber Length Drill Bit, Series: D8182, Imperial, 35/64 in Drill - Fraction, 0.5469 in Drill - Decimal Inch, 6-5/8 in Overall Length, 4-13/16 in Cutting Depth, Spiral Flute, 4-13/16 in Flute Length, 35/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Gold-P/TiN Coated, Applicable Materials: Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
Specifications
ApplicationMachine Tools, Automobiles and Electronic Appliances
Applicable MaterialsAlloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
Cutting Depth4-13/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.5469 in
Drill Size - Fraction35/64 in
FinishGold-P/TiN Coated
Flute Length4-13/16 in
Flute TypeSpiral
MaterialHSS
Overall Length6-5/8 in
Point Angle135 deg
Point TypeSplit
SeriesD8182
Shank Size35/64 in
Shank TypeStraight
Additional Information
Standards/ApprovalANSI Specified
