YG-1 YG1 D2GP187217

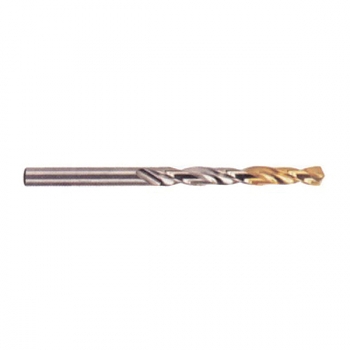

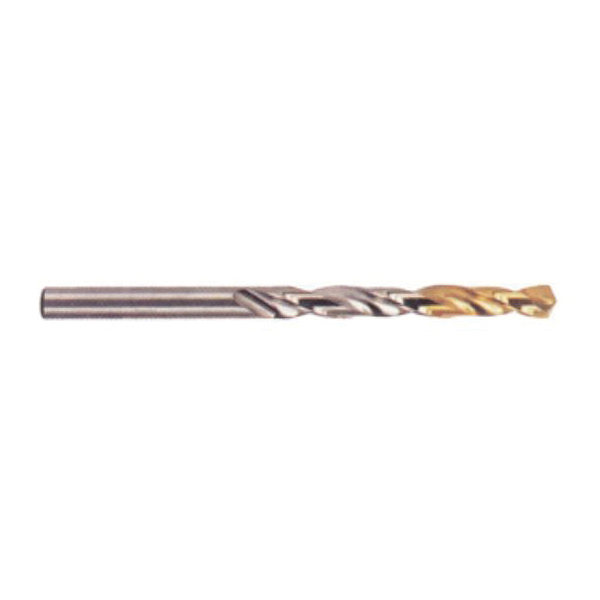

YG-1 D2GP187217 Jobber Length Drill Bit, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, Gold-P/TiN Coated

UNSPSC: 23241606
Manufacturer PN: D2GP187217
$1.35 EA
Factory Order
Estimated to ship in 14 days
QTY:


YG-1 Jobber Length Drill Bit, Series: D2GP187, Imperial, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 2-3/8 in Overall Length, 1-3/8 in Cutting Depth, 1-3/8 in Flute Length, 3/32 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8% Cutting Edge, M42 HSS-Co 8%, Gold-P/TiN Coated, Applicable Materials: Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel

Specifications

Applicable MaterialsAlloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
Cutting Depth1-3/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8%
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.098 in
Drill Size - Wire#40
FinishGold-P/TiN Coated
Flute Length1-3/8 in
MaterialM42 HSS-Co 8%
Overall Length2-3/8 in
Point Angle135 deg
Point TypeSplit
SeriesD2GP187
Shank Size3/32 in
Shank TypeStraight
