YG-1 YG1 D1GP139107

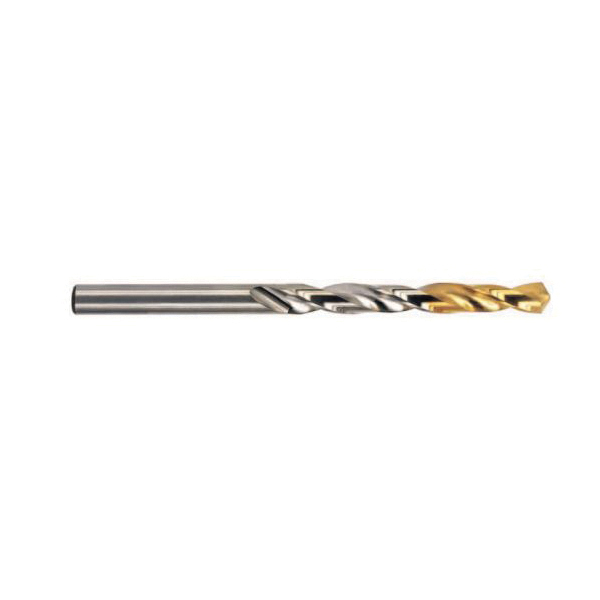

YG-1 D1GP139107 Jobber Length Drill Bit, G Drill - Letter, 0.261 in Drill - Decimal Inch, 135 deg Point, HSS, Gold-P/TiN Coated
Invoice description:
D1gp139107 Jobber Length Dr Ill G 4-1/8 In L
Factory Order
YG-1 Jobber Length Drill Bit, Series: D1GP139, Imperial, G Drill - Letter, 0.261 in Drill - Decimal Inch, 4-1/8 in Overall Length, 2-7/8 in Cutting Depth, Spiral Flute, 2-7/8 in Flute Length, 33/128 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Gold-P/TiN Coated, Applicable Materials: Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
Specifications
Applicable MaterialsAlloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel
Cutting Depth2-7/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.261 in
Drill Size - LetterG
FinishGold-P/TiN Coated
Flute Length2-7/8 in
Flute TypeSpiral
MaterialHSS
Overall Length4-1/8 in
Point Angle135 deg
Point TypeSplit
SeriesD1GP139
Shank Size33/128 in
Shank TypeStraight
Additional Information
Standards/ApprovalANSI Specified
