YG-1 YG1 56593TC

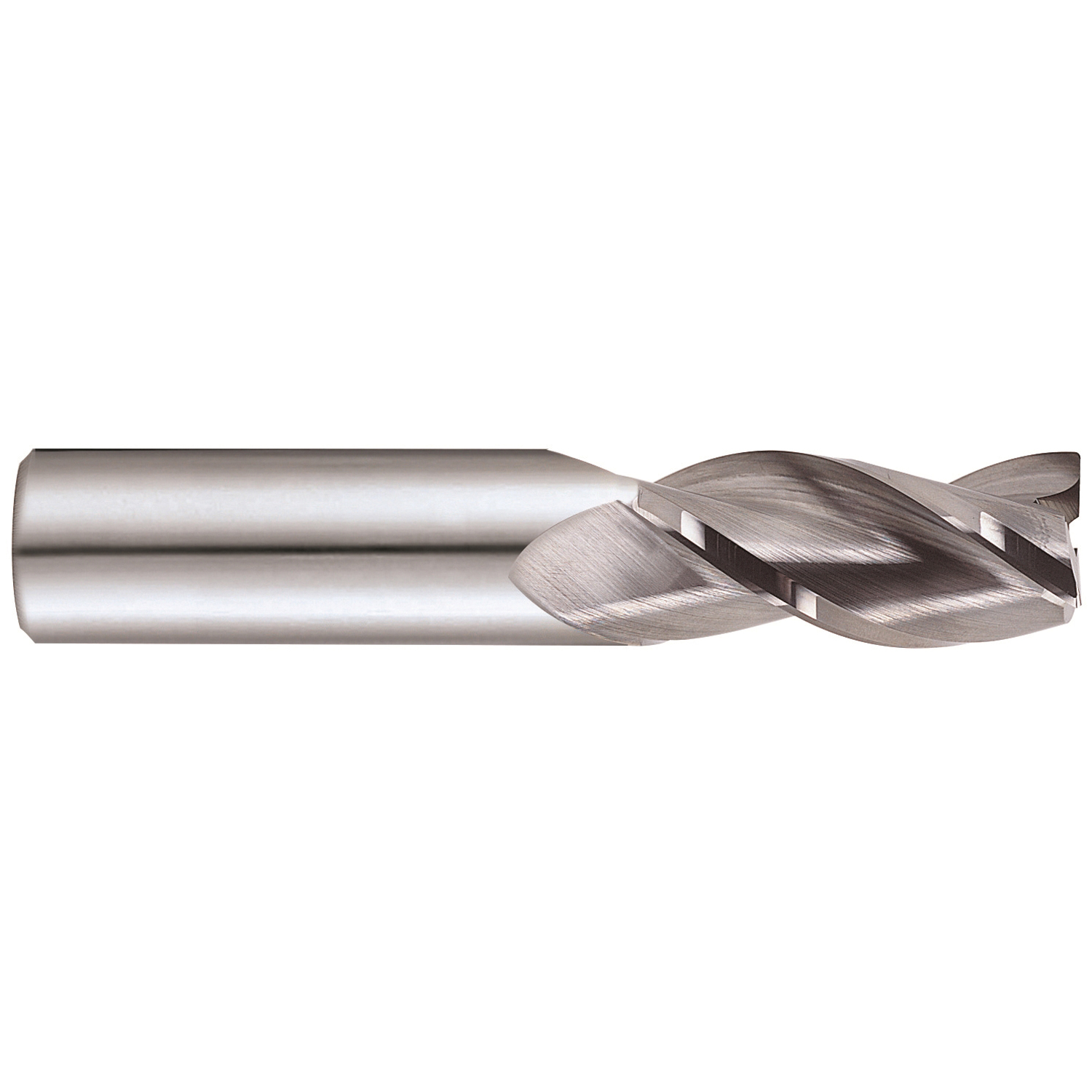

YG-1 56593TC E5104 JET-POWER Center Cut High Performance HOSS Imperial Regular Length Corner Radius End Mill, 1/2 in Dia Cutter, 0.033 in Corner Radius, 1-1/4 in Length of Cut, 3 Flutes, 1/2 in Dia Shank, 3 in OAL, TiCN Coated

UNSPSC: 27112803
Manufacturer PN: 56593TC
$108.92 EA
Factory Order
Estimated to ship in 7 days
QTY:


YG-1 Corner Radius End Mill, Center Cut High Performance HOSS Imperial Regular Length, Series: E5104 JET-POWER, 1/2 in Diameter Cutter, 0.033 in Corner Radius, 3 in Overall Length, 1-1/4 in Length of Cut, 3 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Flat Shank, Micrograin Carbide, TiCN Coated

  • Features

  • #1 choice for slotting, ramping and pocket work on stainless, monel and other alloys up to HRC35
  • Dry milling is recommended on steel alloys to reduce thermal shock and increase the life

Specifications

ApplicationSlotting and Ramping Applications
TypeCenter Cut High Performance HOSS Imperial Regular Length
SeriesE5104 JET-POWER
Cutter Diameter1/2 in
Corner Radius0.033 in
Overall Length3 in
Length of Cut1-1/4 in
Number of Flutes3
Flute TypeSpiral
Shank Diameter1/2 in
Cutting DirectionRight Hand
