Kennametal WIDIA 1123829

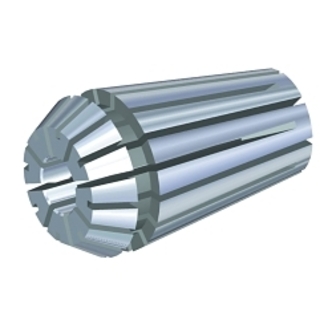

Kennametal 1123829 ER Series Single Angle Standard Collet, 6 mm, 27.5 mm OAL, 5 to 6 mm Capacity, 27.5 mm L Clamping Hole, 17 mm Dia Body, 17 mm Dia Head
Invoice description:
Collett 16er060m
Factory Order
Kennametal Collet, Single Angle Standard, 6 mm, 17 mm Body Dia, 17 mm Head Dia, 27.5 mm Overall Length, 5 to 6 mm, 27.5 mm Clamping Hole Length, ANSI Code: 16ER060M, ISO Code: 16ER060M
Features
- Provides approximately 2:1 grip advantage
- Wide clamping range for all drilling applications
Specifications
ANSI Code16ER060M
Body Diameter17 mm
Capacity5 to 6 mm
Clamping Hole Length27.5 mm
Head Diameter17 mm
ISO Code16ER060M
Overall Length27.5 mm
SeriesER Series
Size6 mm
TypeSingle Angle Standard
Additional Information
Standards/ApprovalDIN 6499 Class 2
