Dormer UTD 7625102

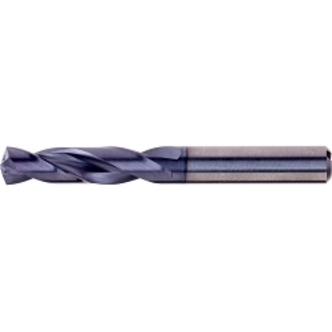

Dormer Short Length Drill Bit, High Performance, Series: FORCE M R467, Imperial, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 2.4409 in Overall Length, 3XD Cutting Depth, 20 mm Flute Length, 6 mm Dia x 36 mm L Shank, Reinforced Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Nickel, Stainless Steel and Titanium

• Features

• These drills are problem solvers, providing high productivity and consistent performance and repeatability in multi-applications across diverse machines and conditions, this makes them the ideal choice for general engineering and sub-contract environments
• Modified 4-facet split point improves chip formation, strength and wear‐resistance
• Consistent edge preparation provides predictable wear and operator confidence
• The family offers ranges of TiAlN coated drills in a variety of lengths, in solid and coolant feed variants
• The new Force M drills are ideally suited for high performance drilling of large numbers of holes in ISO M materials
• CTW flute construction - continuously thinned web technology provides a very strong web design whilst at the same time reducing thrust forces during drilling

Specifications

Documents

• Catalog
