Dormer UTD 0116111

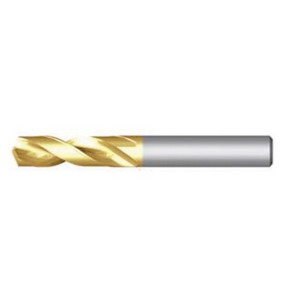

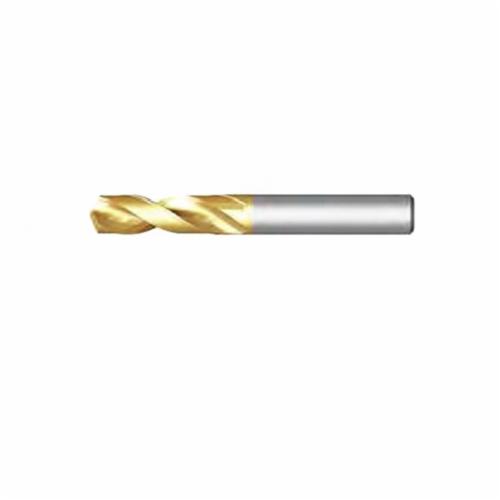

Dormer 5981167 R520 Heavy Duty Multi-Application Screw Machine Drill, 3.5 mm Drill - Metric, 0.1378 in Drill - Decimal Inch, Carbide, TiN Coated

Invoice description: 3.50 Mm Stub Drl R520 Hm Tin Cdx 130d E500 Hss Brt M Tap Iso 529 3fl M3 X 0.60 Mm 5981167

UNSPSC: 23241605
Manufacturer PN: 5981167
$72.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dormer Screw Machine Drill, Heavy Duty Multi-Application, Series: R520, Metric/Imperial, 3.5 mm Drill - Metric, 0.1378 in Drill - Decimal Inch, 52 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 20 mm Flute Length, 3.5 mm Shank, Parallel Shank, 130 deg Point, CDX/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiN Coated, Gold, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy steel/Hardened and Tempered Steel, Alloy steel Hardened, Free Machining Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Nickel Unalloyed, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics and Thermosetting Plastics

  • Features

  • Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
  • Conventional flute geometry designed for general drilling applications

Specifications

ApplicationFor high-speed applications
Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy steel/Hardened and Tempered Steel, Alloy steel Hardened, Free Machining Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Nickel Unalloyed, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics and Thermosetting Plastics
ColorGold
Cutting Depth2.5XD
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.1378 in
Drill Size - Metric3.5 mm
FinishTiN Coated
Flute Length20 mm
Flute TypeSpiral
MaterialCarbide
Number of Flutes2
Overall Length52 mm
Point Angle130 deg
Point TypeCDX/Self-Centering/Split
SeriesR520
Shank Size3.5 mm
Shank TypeParallel
TypeHeavy Duty Multi-Application

Additional Information

Standards/ApprovalDIN 6539|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginFR
