GARR GARR 50830

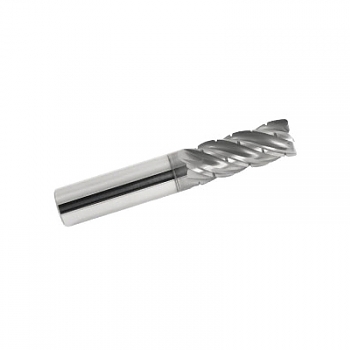

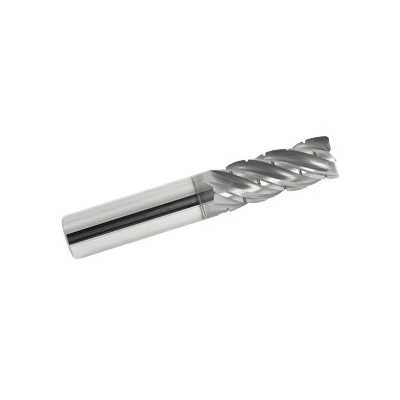

GARR 50830 V5C Center Cutting Chip Splitter High Performance Variable Helix Corner Radius End Mill, 1/2 in Dia Cutter, 1-5/8 in Length of Cut, 5 Flutes, 1/2 in Dia Shank, 4 in OAL, AlCrN Coated
Invoice description:
Em 1/2x1-5/8locx1/2x4 5fl Alcrn Var Hp
Factory Order
GARR Corner Radius End Mill, Center Cutting Chip Splitter High Performance Variable Helix, Series: V5C, 1/2 in Cutter Dia, 4 in Overall Length, 1-5/8 in Length of Cut, 5 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, Plain Shank, Solid Submicron Grain Carbide, AlCrN Coated
Features
- For titanium, inconel and stainless steel
- Chip splitter to help break long chips
- Staggered flutes to control harmonics
- Variable flute design helps with chip evacuation in slots and pockets
- PCT (polish carbide treatment) enhances tool life
- +0.001 to 0.001 in (+0.025 to 0.025 mm) corner radius tolerance
Specifications
ApplicationTrochoidal Milling
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Length of Cut1-5/8 in
MaterialSolid Submicron Grain Carbide
Number of Flutes5
Overall Length4 in
SeriesV5C
Shank Diameter1/2 in
Shank TypePlain
TypeCenter Cutting Chip Splitter High Performance Variable Helix
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
