GARR GARR 50574

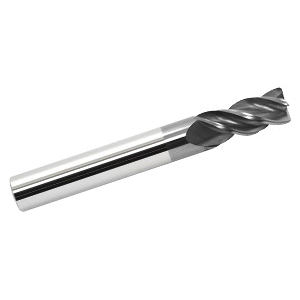

GARR 50574 V4R Center Cutting High Performance Single End Mill, 12 mm Dia Cutter, 3 mm Corner Radius, 42 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 100 mm OAL, AlCrN Coated
Invoice description:
Em 12x42locx12x100mmcr3 4fl Alcrn Hp
Factory Order
GARR End Mill, Center Cutting High Performance Single End, Series: V4R, 12 mm Diameter Cutter, 3 mm Corner Radius, 100 mm Overall Length, 42 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, Plain Shank, Submicron Grain Solid Carbide, AlCrN Coated
Features
- Special edge prep enhances tool life by 20%
- Minimizes burr on part
- Helix geometry varies over length of flutes
- Variable flute design helps with chip evacuation in slots and pockets
- Variable rake aids in chip formation
- PCT (polish carbide treatment) enhances tool life by 20%
- For titanium, inconel and steels (<40 RC
- Corner radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
ApplicationFor titanium, inconel and steels <40Rc
Corner Radius3 mm
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishAlCrN Coated
Flute TypeSpiral
Length of Cut42 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length100 mm
SeriesV4R
Shank Diameter12 mm
Shank TypePlain
TypeCenter Cutting High Performance Single End
Additional Information
Country of OriginUS
