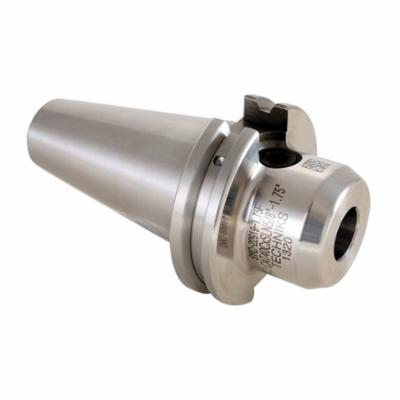

TECHNIKS TECN 22925F

TECHNIKS 22925F Precision Single End End Mill Holder With CoolFLEX Coolant Through Channel, 1 in Dia Hole, Tapered Shank, CAT40 Taper, 2 in Dia Nose, 4 in Projection

Invoice description: Cat40 1" End Mill Holder Coolflex, 22925f

UNSPSC: 27112809
Manufacturer PN: 22925F
$169.22 EA
Factory Order
Estimated to ship in 14 days
QTY:


TECHNIKS End Mill Holder, Precision Single End, 1 in Diameter Hole, Tapered Shank, CAT40 Taper, 2 in Diameter Nose, 4 in Projection, 6.69 in Overall Length

  • Features

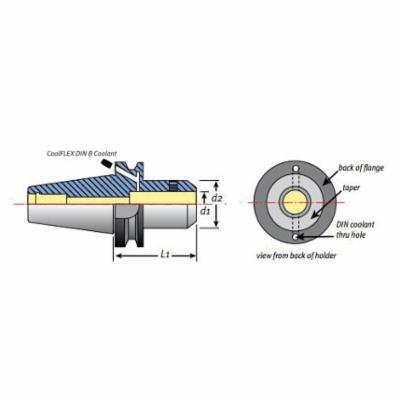

  • TECHNIKS precision CoolFLEX end mill holders offer coolant capability either through the spindle or through the flange (DIN B)
  • TECHNIKS end mills offer an industry leading H5 bore tolerance to increase tool life
  • Individually lab tested to ensure quality
  • Taper ground at AT3 for maximum spindle contact
  • Balanced to 15000 rpm at G6.3
  • 8620 Steel materia

Specifications

Hole Diameter1 in
Nose Diameter2 in
Overall Length6.69 in
Projection4 in
Shank TypeTapered
Taper SizeCAT40
TypePrecision Single End

Additional Information

Standards/ApprovalDIN B
Country of OriginTW
