TECHNIKS TECN 21003-C

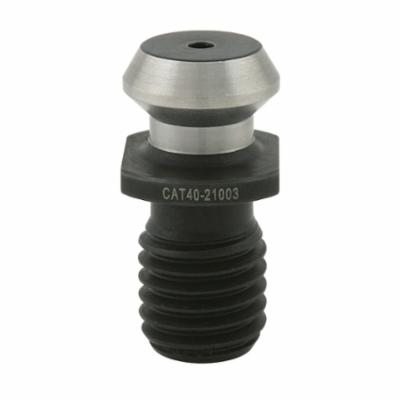

TECHNIKS 21003-C Retention Knob, 5/8-11 Thread, 0.74 in Dia Knob, CAT40 Taper, 1-1/2 in OAL

Invoice description: Cat40 Ansi C Retention Knob, Techniks, 21003

UNSPSC: 23242100
Manufacturer PN: 21003-C
$28.38 EA
Factory Order
Estimated to ship in 7 days
QTY:

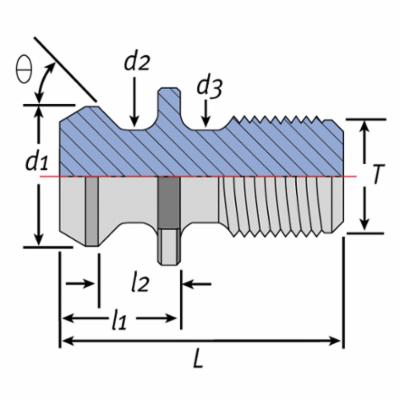

TECHNIKS Retention Knob, 5/8-11, 0.74 in Knob Dia, CAT40 Taper, 0.49 in Neck Dia, 1-1/2 in Overall Length, 0.49 in Flange Thickness, 45 deg Angle Radius, 0.44 in Flange to Angle Length, 0.64 in Flange to Knob Length, Yes Through Coolant (Yes/No)

  • Features

  • All mating surfaces are precision ground
  • Manufactured to the highest standards for maximum safety and long life
  • Hardened for maximum longevity
  • Suitable for use with CAT40 ANSI coolant taper holders

Specifications

Angle Radius45 deg
Flange Thickness0.49 in
Flange to Angle Length0.44 in
Flange to Knob Length0.64 in
Knob Diameter0.74 in
Neck Diameter0.49 in
Overall Length1-1/2 in
Taper SizeCAT40
Thread Size5/8-11
Through Coolant (Yes/No)Yes

Additional Information

Country of OriginTW
