Simpson Strong-Tie SIMS STB2-62812

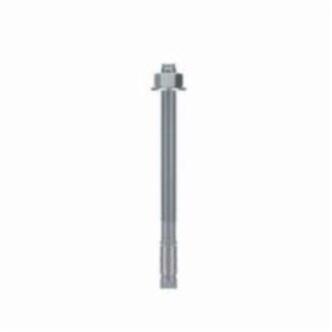

Simpson Strong-Tie STB2-62812 Strong-Bolt 2 Wedge Anchor, 5/8 in Dia, 8-1/2 in OAL, 6 in L Thread, Carbon Steel, Zinc Plated

Invoice description: Anchor Wedge 5/8x8-1/2 S Trong Bolt 2, 20/bx

UPC: 707392564805

UNSPSC: 31162102

Manufacturer PN: STB2-62812

^$64.24 BX

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Simpson Strong-Tie Wedge Anchor, Series: Strong-Bolt 2, 5/8 in Dia, 8-1/2 in Overall Length, 6 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 5/8 in Drill, 5/8-11, 15/16 in Head, 7-7/8 in Maximum Work Thickness, 115000 psi Tensile

Features
Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
Carbon steel stud with special alloy clip
Carbon steel ASTM A563 grade A nut
Carbon steel ASTM F844 washer
Carbon steel ASTM A568 clip
11/16 in Dia baseplate clearance hole
90 ft-lb installation torque
