Simpson Strong-Tie SIMS STB2-62700

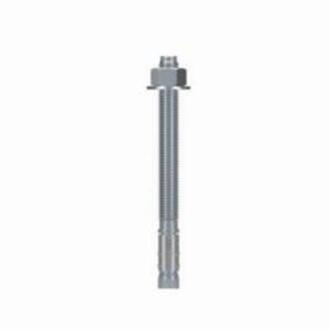

Simpson Strong-Tie STB2-62700 Strong-Bolt 2 Wedge Anchor, 5/8 in Dia, 7 in OAL, 4-15/16 in L Thread, Carbon Steel, Zinc Plated

UPC: 707392252108
UNSPSC:
Manufacturer PN: STB2-62700
$52.36 BX
Factory Order
Estimated to ship in 7 days
QTY:


Simpson Strong-Tie Wedge Anchor, Series: Strong-Bolt 2, 5/8 in Dia, 7 in Overall Length, 4-15/16 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 5/8 in Drill, 5/8-11, 15/16 in Head, 7-7/8 in Maximum Work Thickness, 115000 psi Tensile

  • Features

  • Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
  • Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
  • Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
  • Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
  • Carbon steel stud with special alloy clip
  • Carbon steel ASTM A563 grade A nut
  • Carbon steel ASTM F844 washer
  • Carbon steel ASTM A568 clip
  • 11/16 in Dia baseplate clearance hole
  • 90 ft-lb installation torque

Specifications

ApplicationFor optimal performance in cracked and uncracked concrete as well as uncracked masonry
Diameter5/8 in
Drill Size5/8 in
FinishZinc Plated
Head Size15/16 in
MaterialCarbon Steel
Maximum Work Thickness7-7/8 in
Minimum Embedment Depth3-3/8 in
Overall Length7 in
SeriesStrong-Bolt 2
Tensile Strength115000 psi
Thread Length4-15/16 in
Thread Size5/8-11
