SGS SGS 38175

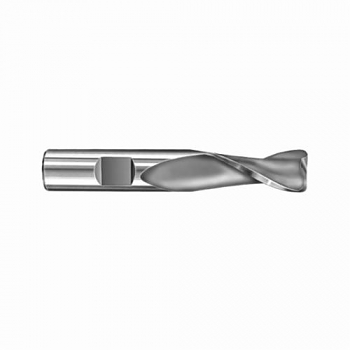

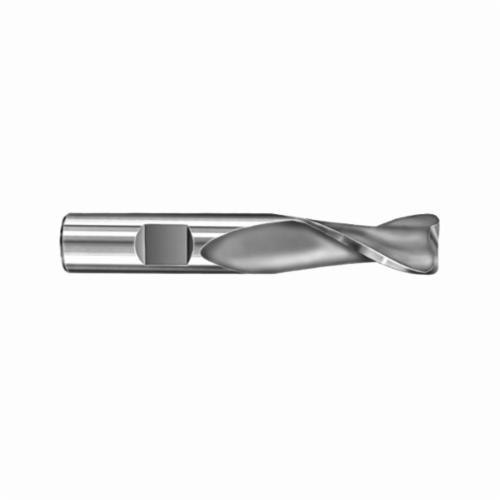

SGS 38175 1CR Center Cutting Positive Rake Regular Length Single End Mill, 1/2 in Dia Cutter, 0.02 in Corner Radius, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL, AlTiN Coated
Invoice description:
Ser 1 1/2 .020 Cr Ta
UPC: 691781381756
UNSPSC:
27112803
Manufacturer PN: 38175
$99.60 EA
Factory OrderEstimated to ship in 14 days
SGS End Mill, Center Cutting Positive Rake Regular Length Single, Series: 1CR, 1/2 in Cutter Dia, 0.02 in Corner Radius, 3 in Overall Length, 1 in Length of Cut, 4 Flutes, Right Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Weldon Flat Shank, 2 in Shank Length, Solid Carbide, AlTiN Coated
Features
- Suitable for steel, stainless steel, cast iron, high temperature alloy, titanium, hardened steel, non-ferrous and plastics/composites
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Corner Radius0.02 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeRight Spiral
Helix Angle30 deg
Length of Cut1 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3 in
Series1CR
Shank Diameter1/2 in
Shank Length2 in
Shank TypeWeldon Flat
TypeCenter Cutting Positive Rake Regular Length Single
Additional Information
Country of OriginUS
Sds
Rohs
