SGS SGS 36612

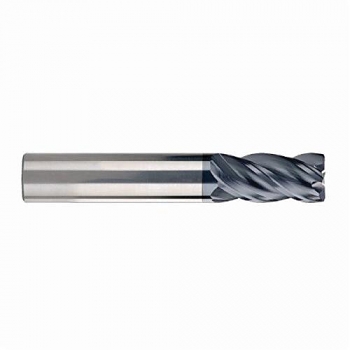

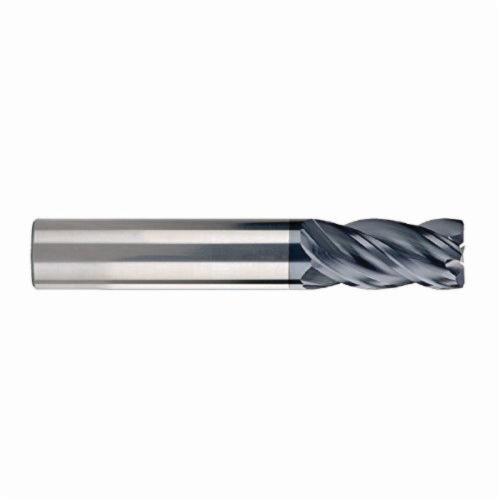

SGS 36612 Z-Carb-AP Z1PCR Center Cutting High Performance Regular Length Single End Variable Rake End Mill, 1/2 in Dia Cutter, 0.09 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, TX Coated

Invoice description: End Mill 1/2" X 1-1/4" Loc .090 Cr Ser Zae1cr,

UPC: 691781366128
UNSPSC: 27112803
Manufacturer PN: 36612
$132.54 EA
Factory Order
Estimated to ship in 14 days
QTY:


SGS End Mill, Center Cutting High Performance Regular Length Single End Variable Rake, Series: Z-Carb-AP Z1PCR, 1/2 in Cutter Dia, 0.09 in Corner Radius, 3-1/4 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, Right Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 35 to 38 deg Helix Angle, Straight Shank, 2 in Shank Length, Solid Carbide, TX Coated

  • Features

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design changes the cutting angle to improve harmonics
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials

Specifications

ApplicationAerospace, Medical, Power Generation, Automotive, Castings, Foundries, General Engineering, Mold and Die
Corner Radius0.09 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishTX Coated
Flute TypeRight Spiral
Helix Angle35 to 38 deg
Length of Cut1-1/4 in
MaterialSolid Carbide
Number of Flutes4
Overall Length3-1/4 in
SeriesZ-Carb-AP Z1PCR
Shank Diameter1/2 in
Shank Length2 in
Shank TypeStraight
TypeCenter Cutting High Performance Regular Length Single End Variable Rake

Additional Information

Country of OriginUS
