SGS SGS 36506

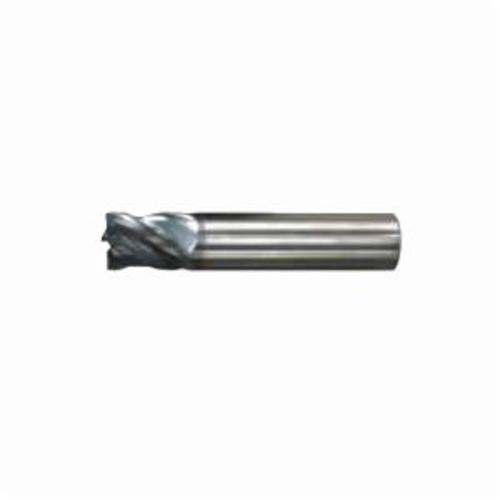

SGS 36506 Z-Carb Z16CR Center Cutting High Performance Positive Rake Single End Stub Length End Mill, 5/32 in Dia Cutter, 0.015 in Corner Radius, 5/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, AlTiN Coated

Invoice description: 5/32 Dia 5/16 Loc Z Carb

UPC: 691781365060
UNSPSC: 27112803
Manufacturer PN: 36506
$33.80 EA
Factory Order
Estimated to ship in 7 days
QTY:


SGS End Mill, Center Cutting High Performance Positive Rake Single End Stub Length, Series: Z-Carb Z16CR, 5/32 in Diameter Cutter, 0.015 in Corner Radius, 2 in Overall Length, 5/16 in Length of Cut, 4 Flutes, Right Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 35 to 38 deg Helix Angle, Straight Shank, 1.688 in Shank Length, Solid Carbide, AlTiN Coated

  • Features

  • Unequal helix design aids in damaging harmonics by changing the angle at which each cutting edge enters and exits the material
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Optimal material removal rates through increased feed and depths of cut
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials

Specifications

ApplicationAerospace, Medical, Power Generation, Automotive, Castings, Foundries, General Engineering, Mold and Die
Corner Radius0.015 in
Cutter Diameter5/32 in
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeRight Spiral
Helix Angle35 to 38 deg
Length of Cut5/16 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2 in
SeriesZ-Carb Z16CR
Shank Diameter3/16 in
Shank Length1.688 in
Shank TypeStraight
TypeCenter Cutting High Performance Positive Rake Single End Stub Length

Additional Information

Country of OriginUS
