SGS SGS 36388

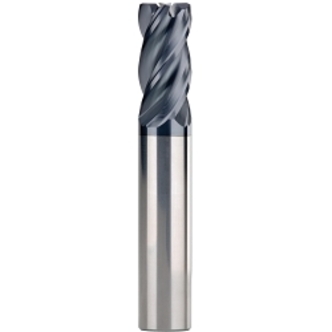

SGS 36388 Z-Carb-AP Z1PCR Center Cutting High Performance Regular Length Single End Variable Rake End Mill, 3/4 in Dia Cutter, 0.09 in Corner Radius, 1-1/2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL, TX Coated
Invoice description:
End Mill 3/4x1-1/2x4 Fl .090r Z Carb
UPC: 691781363882
UNSPSC:
27112803
Manufacturer PN: 36388
$326.06 EA
Factory OrderEstimated to ship in 14 days
SGS End Mill, Center Cutting High Performance Regular Length Single End Variable Rake, Series: Z-Carb-AP Z1PCR, 3/4 in Diameter Cutter, 0.09 in Corner Radius, 4 in Overall Length, 1-1/2 in Length of Cut, 4 Flutes, Right Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 35 to 38 deg Helix Angle, Straight Shank, 2-1/2 in Shank Length, Solid Carbide, TX Coated
Features
- Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design changes the cutting angle to improve harmonics
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Enhanced corner geometry with tight tolerance corner radii
- Recommended for materials
Specifications
ApplicationAerospace, Medical, Power Generation, Automotive, Castings, Foundries, General Engineering, Mold and Die
Corner Radius0.09 in
Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishTX Coated
Flute TypeRight Spiral
Helix Angle35 to 38 deg
Length of Cut1-1/2 in
MaterialSolid Carbide
Number of Flutes4
Overall Length4 in
SeriesZ-Carb-AP Z1PCR
Shank Diameter3/4 in
Shank Length2-1/2 in
Shank TypeStraight
TypeCenter Cutting High Performance Regular Length Single End Variable Rake
Additional Information
Country of OriginUS
