SGS SGS 07015

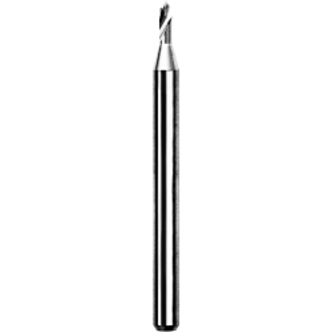

SGS 07015 M080 Spotting Micro Drill Bit With External Coolant, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, Submicron Grain Carbide, Ti-NAMITE-A Coated

Invoice description: 1/8 X .200 X 1-1/2 130d Mi Cro Spot Drill

UPC: 691781070155
UNSPSC: 23241605
Manufacturer PN: 07015
$25.78 EA
Factory Order
Estimated to ship in 7 days
QTY:


SGS Micro Drill Bit, Spotting, Series: M080, Imperial, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 1-1/2 in Overall Length, 2 Flutes, Spiral Flute, 0.2 in Flute Length, 1/8 in Dia Shank, Common Shank, 130 deg Point, 4-Facet Point, Right Hand Cutting Direction, Submicron Grain Carbide Cutting Edge, Submicron Grain Carbide, Ti-NAMITE-A Coated, Applicable Materials: Steel, Stainless Steel, Cast Iron, High Temperature Alloy, Titanium Alloy, Non-Ferrous, Plastics/Composites and Hardened Steels

  • Features

  • Four facet point design, stub length, and mirror finish provide the highest quality spot
  • Ti-NAMITE-A coating for the ultimate performance and tool life in a variety of ferrous and non-ferrous workpiece materials
  • Available from stock in all popular diameters and point configurations
  • Application specific sub micron grain carbide designed specifically for micro tool applications
  • Manufactured in accordance with KSPT ISO certified quality procedures

Specifications

ApplicationAerospace, Automotive, Casting and Foundries, Medical, Mold and Die, General Engineering and Power Generation Applications
Applicable MaterialsSteel, Stainless Steel, Cast Iron, High Temperature Alloy, Titanium Alloy, Non-Ferrous, Plastics/Composites and Hardened Steels
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.125 in
Drill Size - Fraction1/8 in
FinishTi-NAMITE-A Coated
Flute Length0.2 in
Flute TypeSpiral
MaterialSubmicron Grain Carbide
Number of Flutes2
Overall Length1-1/2 in
Point Angle130 deg
Point Type4-Facet
SeriesM080
Shank Size1/8 in Dia
Shank TypeCommon
TypeSpotting

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals i
Country of OriginUS
