GARR GARR 49904

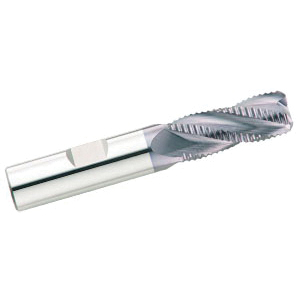

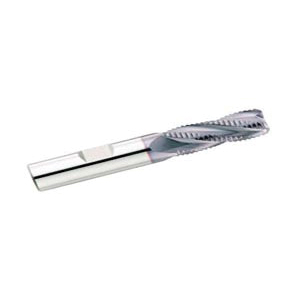

GARR 49904 VHM Center Cutting Chamfer End High Performance Hog End Mill, 20 mm Dia Cutter, 40 mm Length of Cut, 4 Flutes, 20 mm Dia Shank, 150 mm OAL, AlTiN/X.CEED Coated

Invoice description: Em 20x40locx20x150mm 4fl Altin Chmf W/f Hp

UNSPSC: 27112803

Manufacturer PN: 49904

^$390.62 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

GARR Hog End Mill, Center Cutting Chamfer End High Performance, Series: VHM, 20 mm Diameter Cutter, 150 mm Overall Length, 40 mm Length of Cut, 4 Flutes, Staggered Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Grain Solid Carbide, AlTiN/X.CEED Coated

Features
State-of-the-art rougher using VRX technology
Variable flute geometry
For stainless steel, inconel, pH materials, cold rolled steel, titanium, cast iron and tool steels
Furnished with a standard 45 deg lead chamfer
