GARR GARR 48370

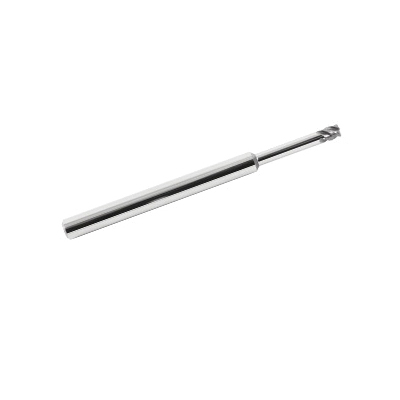

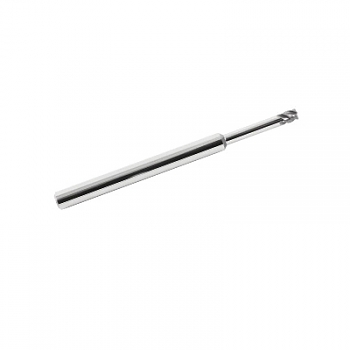

GARR 48370 H45 Center Cutting High Feed High Performance Corner Radius End Mill, 3/16 in Dia Cutter, 0.02 in Corner Radius, 3/16 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 4 in OAL, AlTiN Coated
Invoice description:
Em 3/16x3/16locx1/4x4 Cr0.02 4fl Altin Hp
Factory Order
GARR Corner Radius End Mill, Center Cutting High Feed High Performance, Series: H45, 3/16 in Cutter Dia, 0.02 in Corner Radius, 4 in Overall Length, 3/16 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Dia, Right Hand Cutting, 45 deg Helix Angle, Solid Submicron Grain Carbide, AlTiN Coated
Features
- High performance tool for use on light axial depths of cut
Specifications
ApplicationFor die mold applications
Corner Radius0.02 in
Cutter Diameter3/16 in
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle45 deg
Length of Cut3/16 in
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length4 in
SeriesH45
Shank Diameter1/4 in
TypeCenter Cutting High Feed High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
