Sandvik Coromant SANC 6434029

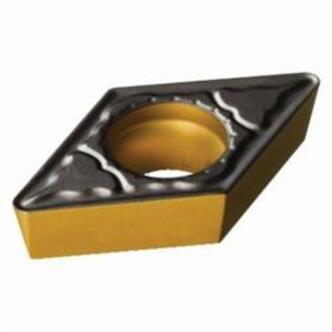

Sandvik Coromant 6434029 CoroTurn 111 Turning Insert, ANSI Code: DPMT 3(2.5)1-PM 4325, DPMT Insert, Material Grade: K, P, 3(2.5)1 Insert, Rhombic Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
Invoice description:
Ins Dpmt3(2.5)1-pm 4325
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 111, DPMT Insert, 3(2.5)1 Insert, Rhombic, 0.118 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 11 Seat, Positive Rake, PM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: DPMT 3(2.5)1-PM 4325, ISO Code: DPMT 11 T3 04-PM 4325, 55 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- Low cutting forces
- Excellent edge strength
- Screw clamping ensures stability and unobstructed chip flow
Specifications
ApplicationMedium Applications
ANSI CodeDPMT 3(2.5)1-PM 4325
ChipbreakerPM
Corner Radius0.0156 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.1732 in
Included Angle55 deg
Inscribed Circle3/8 in
Insert Size3(2.5)1
Insert StyleDPMT
ISO CodeDPMT 11 T3 04-PM 4325
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut0.118 in
RakePositive
Relief Angle11 deg
Seat Size11
SeriesCoroTurn 111
ShapeRhombic
Thickness0.1562 in
Additional Information
Country of OriginSE
Sds
