Sandvik Coromant SANC 6198257

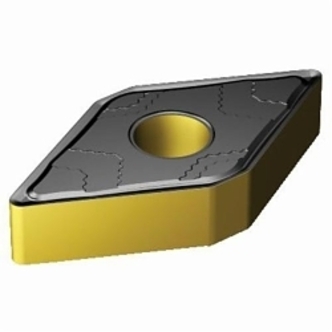

Sandvik Coromant 6198257 T-Max P Turning Insert, ANSI Code: DNMG 432-PMC 4325, DNMG Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325
Invoice description:
Ins Dnmg 150408-pmc 4325
Factory Order
Sandvik Coromant Turning Insert, Series: T-Max P, DNMG Insert, 432 Insert, Rhombic, 0.157 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, PMC Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: DNMG 432-PMC 4325, ISO Code: DNMG 15 04 08-PMC 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Specifications
ApplicationMedium Applications
ANSI CodeDNMG 432-PMC 4325
ChipbreakerPMC
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.2029 in
Included Angle55 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 15 04 08-PMC 4325
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut0.157 in
RakeNegative
Relief Angle0 deg
Seat Size15
SeriesT-Max P
ShapeRhombic
Thickness0.1874 in
Additional Information
Country of OriginSE
