Sandvik Coromant SANC 5755929

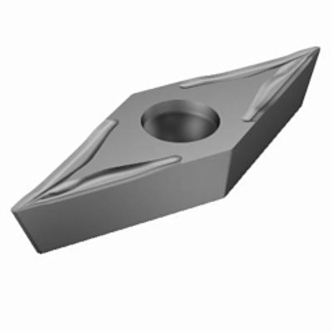

Sandvik Coromant 5755929 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: VCGT 221-UM H13A, VCGT Insert, Material Grade: K, M, N, P, S, 221 Insert, Rhombic Shape, 11 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: H13A
Invoice description:
Ins Vcgt 221-um H13a
Factory Order
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VCGT Insert, 221 Insert, Rhombic, 0.118 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, 11 Seat, Positive Rake, UM Chipbreaker, 0.016 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: H13A, ANSI Code: VCGT 221-UM H13A, ISO Code: VCGT 11 03 04-UM H13A, 35 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: K, M, N, P, S, For Use On: Cast Iron, Heat-Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel
Features
- Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Specifications
ApplicationMedium Applications
ANSI CodeVCGT 221-UM H13A
ChipbreakerUM
Corner Radius0.016 in
Cutting DirectionNeutral
FinishUncoated
For Use OnCast Iron, Heat-Resistant Super Alloys, Non-Ferrous Metals, Stainless Steel and Steel
Hole Diameter0.1102 in
Included Angle35 deg
Inscribed Circle1/4 in
Insert Size221
Insert StyleVCGT
ISO CodeVCGT 11 03 04-UM H13A
Length0.4358 in
Manufacturers GradeH13A
MaterialCarbide
Material GradeK, M, N, P, S
Maximum Depth of Cut0.118 in
RakePositive
Relief Angle7 deg
Seat Size11
SeriesCoroTurn 107
ShapeRhombic
Thickness1/8 in
Type1-Sided Basic Shape
Additional Information
Country of OriginIN
