Sandvik Coromant SANC 5749392

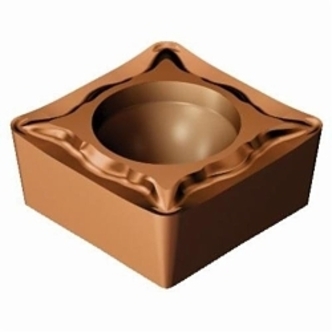

Sandvik Coromant 5749392 CoroTurn 107 Turning Insert, ANSI Code: SCMT 3(2.5)2-UM 1125, SCMT Insert, Material Grade: M, N, P, S, 3(2.5)2 Insert, Squared Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 1125
Invoice description:
Ins Scmt 09t308-um 1125
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, SCMT Insert, 3(2.5)2 Insert, Squared, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 3/8 in Width, 3/8 in Length, 09 Seat, Positive Rake, UM Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1125, ANSI Code: SCMT 3(2.5)2-UM 1125, ISO Code: SCMT 09 T3 08-UM 1125, 90 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, N, P, S, For Use On: Stainless Steel, Non-Ferrous Metals, Steel, Heat-Resistant Super Alloys and Titanium
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- 40 to 60 deg countersunk hole and non-flat surface
Specifications
ApplicationMedium Applications
ANSI CodeSCMT 3(2.5)2-UM 1125
ChipbreakerUM
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishPVD-TiAlN+AlCr2O3 Coated
For Use OnStainless Steel, Non-Ferrous Metals, Steel, Heat-Resistant Super Alloys and Titanium
Hole Diameter0.1732 in
Included Angle90 deg
Inscribed Circle3/8 in
Insert Size3(2.5)2
Insert StyleSCMT
ISO CodeSCMT 09 T3 08-UM 1125
Length3/8 in
Manufacturers Grade1125
MaterialCarbide
Material GradeM, N, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle7 deg
Seat Size09
SeriesCoroTurn 107
ShapeSquared
Thickness0.156 in
Width3/8 in
Additional Information
Country of OriginSE
