GARR GARR 48300

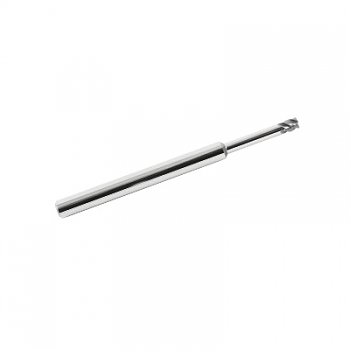

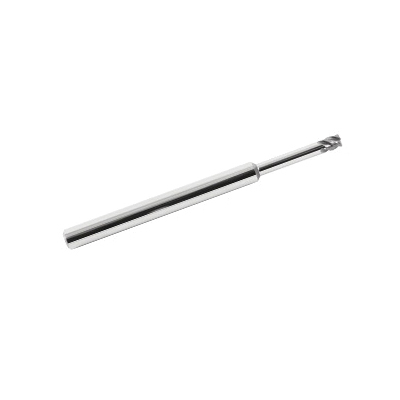

GARR 48300 H45 Center Cutting High Feed High Performance Corner Radius End Mill, 3 mm Dia Cutter, 0.75 mm Corner Radius, 3 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 65 mm OAL, AlTiN Coated
Invoice description:
Em 3x3locx6x65mm Cr0.75 4fl Altin Hp
Factory Order
GARR Corner Radius End Mill, Center Cutting High Feed High Performance, Series: H45, 3 mm Cutter Dia, 0.75 mm Corner Radius, 65 mm Overall Length, 3 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 45 deg Helix Angle, Solid Submicron Grain Carbide, AlTiN Coated
Features
- High performance tool for use on light axial depths of cut
Specifications
ApplicationFor die mold applications
Corner Radius0.75 mm
Cutter Diameter3 mm
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle45 deg
Length of Cut3 mm
MaterialSolid Submicron Grain Carbide
Number of Flutes4
Overall Length65 mm
SeriesH45
Shank Diameter6 mm
TypeCenter Cutting High Feed High Performance
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. For more information go towww.P65Warnings.ca.gov
Country of OriginUS
