Sandvik Coromant SANC 5723032

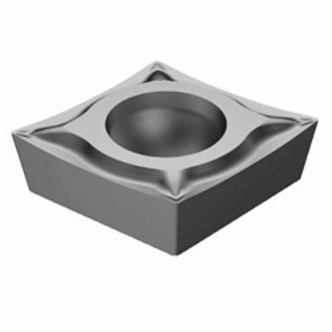

Sandvik Coromant 5723032 CoroTurn 107 Turning Insert, ANSI Code: CCGT 3(2.5) 1-UM H13A, CCGT Insert, Material Grade: K, N, S, 3(2.5) 1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: H13A
Invoice description:
Ins Ccmt 32.51-um H13a Ins Ccmt 32.51-um H13a
Factory Order
Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCGT Insert, 3(2.5) 1 Insert, Diamond, 2.1 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, UM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: H13A, ANSI Code: CCGT 3(2.5) 1-UM H13A, ISO Code: CCGT 09 T3 04-UM H13A, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: K, N, S, For Use On: Cast Iron, Non-Ferrous Metals, Heat-Resistant Super Alloys and Titanium
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationMedium Machining Applications
ANSI CodeCCGT 3(2.5) 1-UM H13A
ChipbreakerUM
Corner Radius0.0156 in
Cutting DirectionNeutral
FinishUncoated
For Use OnCast Iron, Non-Ferrous Metals, Heat-Resistant Super Alloys and Titanium
Hole Diameter0.1732 in
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size3(2.5) 1
Insert StyleCCGT
ISO CodeCCGT 09 T3 04-UM H13A
Manufacturers GradeH13A
MaterialCarbide
Material GradeK, N, S
Maximum Depth of Cut2.1 mm
RakePositive
Relief Angle7 deg
Seat Size09
SeriesCoroTurn 107
ShapeDiamond
Thickness0.1562 in
Additional Information
Country of OriginIN
