GARR GARR 39983

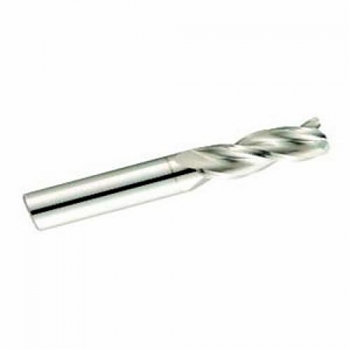

GARR 39983 143R Center Cutting High Performance Single End Mill, 1/2 in Dia Cutter, 0.03 in Corner Radius, 5/8 in Length of Cut, 3 Flutes, 1/2 in Dia Shank, 4 in OAL, Alumastar Coated
Invoice description:
Em 1/2x5/8locx1/2x4 Cr0.03 3fl Alum Hp
Factory Order
GARR End Mill, Center Cutting High Performance Single End, Series: 143R, 1/2 in Diameter Cutter, 0.03 in Corner Radius, 4 in Overall Length, 5/8 in Length of Cut, 3 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Round Shank, 3-3/8 in Shank Length, Submicron Grain Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- Radius tolerance +/-0.0005 in (+/-0.0127 mm)
Specifications
ApplicationFor high speed machining of aluminum
Corner Radius0.03 in
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut5/8 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes3
Overall Length4 in
Series143R
Shank Diameter1/2 in
Shank Length3-3/8 in
Shank TypeRound
TypeCenter Cutting High Performance Single End
Additional Information
Country of OriginUS
Specification Sheet
