GARR GARR 39843

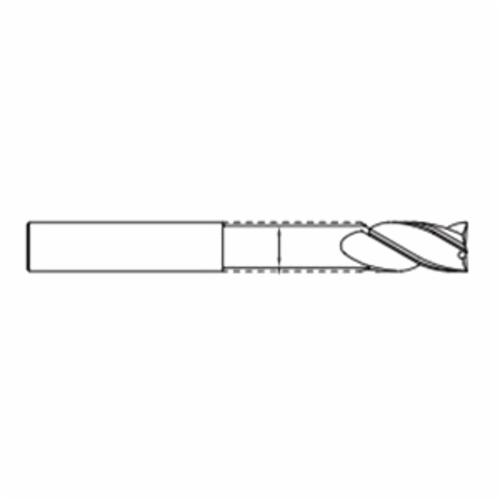

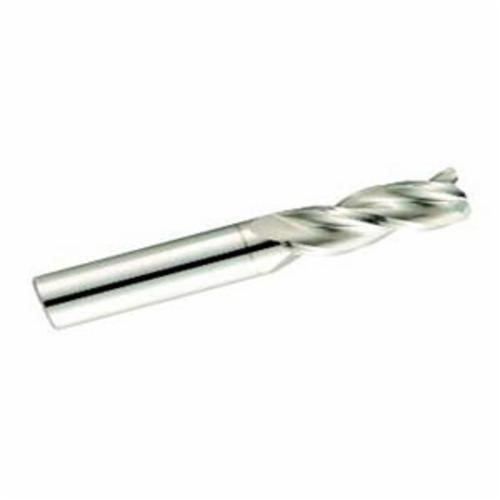

GARR 39843 143R Center Cutting High Performance Single End Mill, 10 mm Dia Cutter, 0.5 mm Corner Radius, 12 mm Length of Cut, 3 Flutes, 10 mm Dia Shank, 100 mm OAL, Alumastar Coated
Invoice description:
Em 10x12locx10x100mm Cr0.5 3fl Alum Hp
Factory Order
GARR End Mill, Center Cutting High Performance Single End, Series: 143R, 10 mm Cutter Dia, 0.5 mm Corner Radius, 100 mm Overall Length, 12 mm Length of Cut, 3 Flutes, Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 38 deg Helix Angle, Round Shank, 88 mm Shank Length, Submicron Grain Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- Radius tolerance +/-0.0005 in (+/-0.0127 mm)
Specifications
ApplicationFor high speed machining of aluminum
Corner Radius0.5 mm
Cutter Diameter10 mm
Cutting DirectionRight Hand
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut12 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes3
Overall Length100 mm
Series143R
Shank Diameter10 mm
Shank Length88 mm
Shank TypeRound
TypeCenter Cutting High Performance Single End
Additional Information
Country of OriginUS
Specification Sheet
