GARR GARR 39692

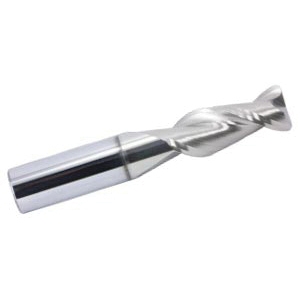

GARR 39692 142R Center Cutting Single End Mill With Neck, 8 mm Dia Cutter, 2 mm Corner Radius, 12 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 75 mm OAL, Alumastar Coated
Invoice description:
Em 8x12locx8x75mm Cr2 2fl Alum Neck
Factory Order
GARR End Mill, Center Cutting Single End, Series: 142R, 8 mm Cutter Dia, 2 mm Corner Radius, 75 mm Overall Length, 12 mm Length of Cut, 2 Flutes, Spiral Flute, 8 mm Shank Dia, Right Hand Cutting, 41 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- Radius tolerance +/-0.0005 in (+/-0.0127 mm)
Specifications
ApplicationFor high speed machining of aluminum
Corner Radius2 mm
Cutter Diameter8 mm
Cutting DirectionRight Hand
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle41 deg
Length of Cut12 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length75 mm
Series142R
Shank Diameter8 mm
Shank TypeRound
TypeCenter Cutting Single End
Additional Information
Country of OriginUS
Specification Sheet
