GARR GARR 39314

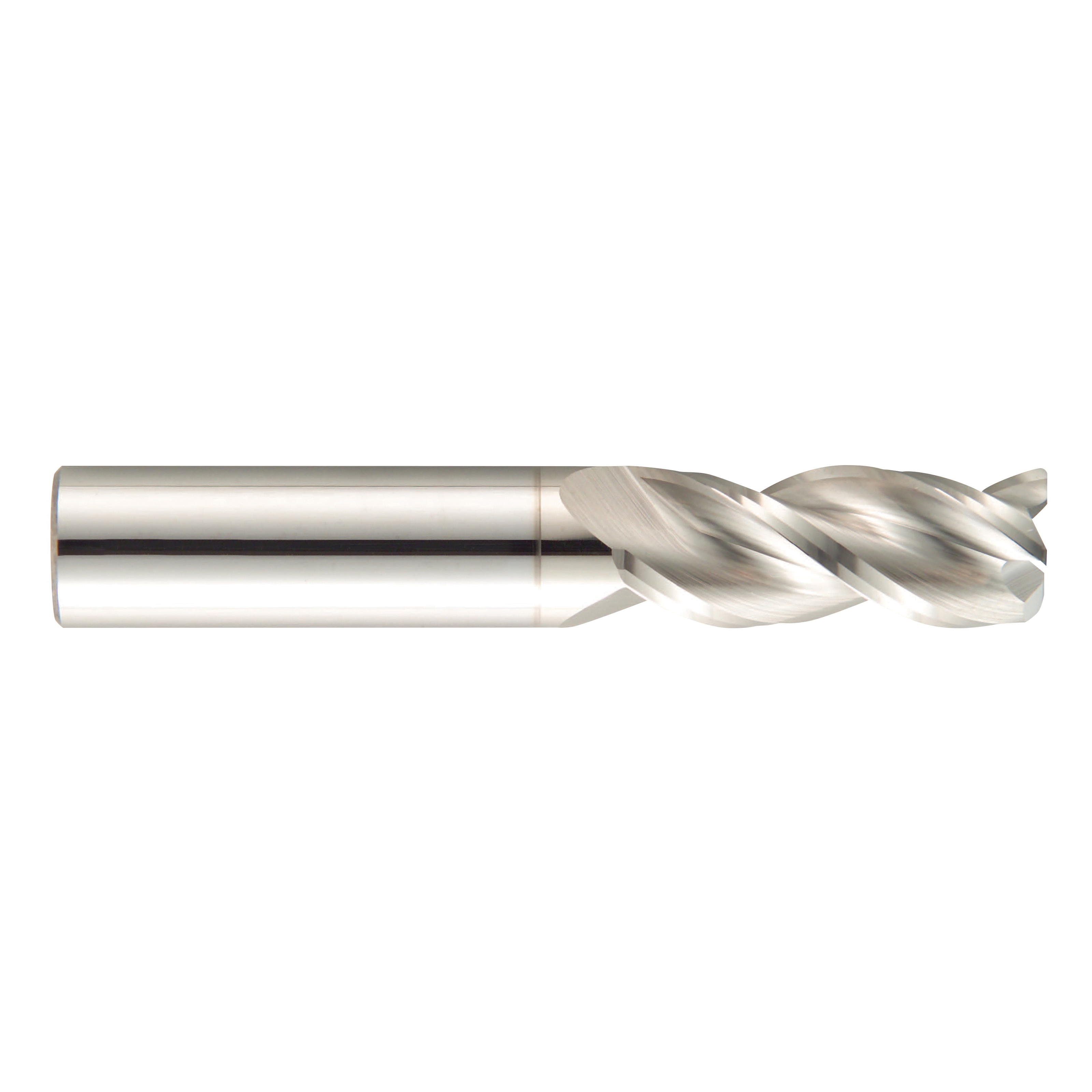

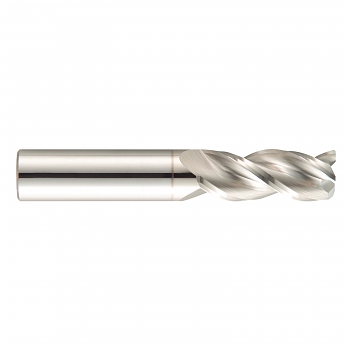

GARR 39314 143R Center Cutting High Performance HSAL Corner Radius End Mill, 1/4 in Dia Cutter, 0.01 in Corner Radius, 1/2 in Length of Cut, 3 Flutes, 1/4 in Dia Shank, 2 in OAL, Alumastar Coated
Invoice description:
Em 1/4x1/2locx1/4x2 Cr0.01 3fl Alum Hp
In stock
(5)
GARR Corner Radius End Mill, Center Cutting High Performance HSAL, Series: 143R, 1/4 in Cutter Dia, 0.01 in Corner Radius, 2 in Overall Length, 1/2 in Length of Cut, 3 Flutes, Spiral Flute, 1/4 in Shank Dia, 38 deg Helix Angle, Submicron Grain Solid Carbide, Alumastar Coated
Features
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- +/-0.0005 in radius tolerance
Specifications
ApplicationFor high speed machining of aluminum
Corner Radius0.01 in
Cutter Diameter1/4 in
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut1/2 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes3
Overall Length2 in
Series143R
Shank Diameter1/4 in
TypeCenter Cutting High Performance HSAL
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer
Country of OriginUS
