GARR GARR 39275

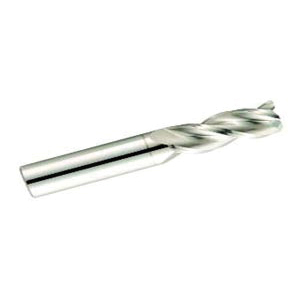

GARR 39275 143R Center Cutting High Performance Single End Mill, 3/16 in Dia Cutter, 0.02 in Corner Radius, 5/16 in Length of Cut, 3 Flutes, 3/16 in Dia Shank, 2 in OAL, Alumastar Coated

Invoice description: Em 3/16x5/16locx3/16x2 Cr0.02 3fl Alum Hp

UNSPSC: 27112803
Manufacturer PN: 39275
$29.36 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting High Performance Single End, Series: 143R, 3/16 in Diameter Cutter, 0.02 in Corner Radius, 2 in Overall Length, 5/16 in Length of Cut, 3 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, Alumastar Coated

  • Features

  • Specific coating engineered to repel aluminum
  • Engineered to run at 750 to 2500 sfm
  • High velocity - high metal removal rate
  • Use properly balanced holders
  • Holds perpendicularity
  • Flats can be added within 48 hr for a nominal charge
  • Radius tolerance +/-0.0005 in (+/-0.0127 mm)

Specifications

ApplicationFor high speed machining of aluminum
Corner Radius0.02 in
Cutter Diameter3/16 in
Cutting DirectionRight Hand
FinishAlumastar Coated
Flute TypeSpiral
Helix Angle38 deg
Length of Cut5/16 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes3
Overall Length2 in
Series143R
Shank Diameter3/16 in
Shank TypeRound
TypeCenter Cutting High Performance Single End

Additional Information

Country of OriginUS
