Chicago-Latrobe PRO 50735

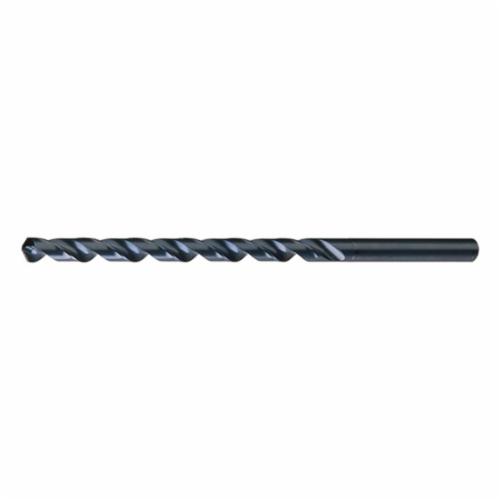

Chicago-Latrobe 50735 120X Extra Long General Purpose Heavy Duty Taper Length Drill, E Drill - Letter, 0.25 in Drill - Decimal Inch, 12 in OAL, HSS, Black Oxide
Invoice description:
1/4 X 12 #120x Hss Long Drill, Edp 50735
UPC: 662355507353
UNSPSC:
23241606
Manufacturer PN: 50735
$32.54 EA
Factory OrderEstimated to ship in 7 days
Chicago-Latrobe Taper Length Drill, Extra Long General Purpose Heavy Duty, Series: 120X, E Drill - Letter, 0.25 in Drill - Decimal Inch, 12 in Overall Length, 9 in Cutting Depth, 2 Flutes, Spiral Flute, 9 in Flute Length, 1/4 in Shank, Straight Shank, 118 deg Point, K-Notch Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Carbon Steel, Alloy Steel and Cast Iron
Features
- Heavy duty construction and extra length to drill in a wide range of applications where extra reach is needed
- Multiple lengths offered for popular drill diameters
- Manufactured from premium high speed steel
- Black oxide finish provides increased wear resistance and added lubricity in ferrous materials
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Oxide prevents chip building, galling and welding on the work piece
Specifications
ApplicationDesigned for long reach applications
Applicable MaterialsCarbon Steel, Alloy Steel and Cast Iron
Cutting Depth9 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.25 in
Drill Size - LetterE
FinishBlack Oxide
Flute Length9 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length12 in
Point Angle118 deg
Point TypeK-Notch
Series120X
Shank Size1/4 in
Shank TypeStraight
TypeExtra Long General Purpose Heavy Duty
