GARR GARR 39150

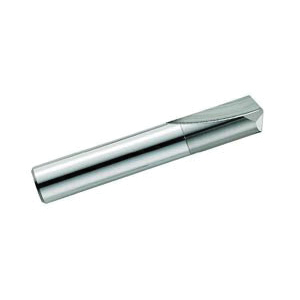

GARR 39150 1500 Hard Metal Straight Flute Drill Bit, 3.5 mm Drill - Metric, 0.1378 in Drill - Decimal Inch, 3XD D Cutting, 2 Flutes, Submicron Grain Solid Carbide
Invoice description:
Drill St Fl 3.5mm (0.1378) Crb 135 Brt 3xd
Factory Order
GARR Straight Flute Drill Bit, Hard Metal, Series: 1500, Metric/Imperial, 3.5 mm Drill - Metric, 0.1378 in Drill - Decimal Inch, 50 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Straight Flute, 25 mm Flute Length, 3.5 mm Shank, 135 deg Point, Primary/Secondary Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Applicable Materials: High Nickel, Cobalt Based and Powdered Metal, Submicron Grain Solid Carbide, Uncoated
Features
- For materials 40 Rc and higher
- 1.5 times the dia optimum drilling depth
- 2 straight/RHC flute design provides excellent rigidity
- Live tooling recommended on lathe processes
- Primary/secondary point
Specifications
Applicable MaterialsHigh Nickel, Cobalt Based and Powdered Metal
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.1378 in
Drill Size - Metric3.5 mm
FinishUncoated
Flute Length25 mm
Flute TypeStraight
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length50 mm
Point Angle135 deg
Point TypePrimary/Secondary
Series1500
Shank Size3.5 mm
TypeHard Metal
Additional Information
Country of OriginUS
