PFERD PFE 25142

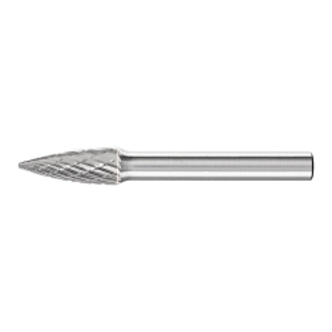

PFERD 21725142 Universal Line Premium Grade Carbide Burr, Radius End, Taper Radius (Shape SL) Head, 5/16 in Dia Head, 7/8 in L of Cut, 2-13/16 in OAL, Double Cut

Invoice description: Carbide Bur, 14deg Taper 5/16x7/8x1/4shank

UPC: 097758251426
UNSPSC: 23251706
Manufacturer PN: 21725142
$24.76 EA
Factory Order
Estimated to ship in 14 days
QTY:


PFERD Carbide Burr, Premium Grade, Series: Universal Line, Radius, 5/16 in Head Dia, 7/8 in Length of Cut, 2-13/16 in Overall Length, Taper Radius (Shape SL) Head Shape, Double Cut Type, 1/4 in Shank Dia, 1-15/16 in Shank Length, Tungsten Carbide Head, Bright Head Coating, 14 deg Included Angle, 36000 rpm Maximum, Applicable Materials: Cast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel, SL-2 Industry Specification

  • Features

  • Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating
  • Long service life
  • Reduced wear on the power tool due to impact-free work without chatter marks, due to the high concentricity
  • High surface quality

Specifications

ApplicationDeburring, Leveling, Milling Out, Cutting Out Holes, Surface Work and Work on Weld Seams
Applicable MaterialsCast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel
Cut TypeDouble
End TypeRadius
Head CoatingBright
Head Diameter5/16 in
Head MaterialTungsten Carbide
Head ShapeTaper Radius (Shape SL)
Included Angle14 deg
Industry SpecificationSL-2
Length of Cut7/8 in
Maximum Speed36000 rpm
Overall Length2-13/16 in
SeriesUniversal Line
Shank Diameter1/4 in
Shank Length1-15/16 in
TypePremium Grade

Additional Information

Standards/ApprovalPROP65: California to cause cancer. www.P65Warning
Country of OriginDE
