MORSE MOR 91073

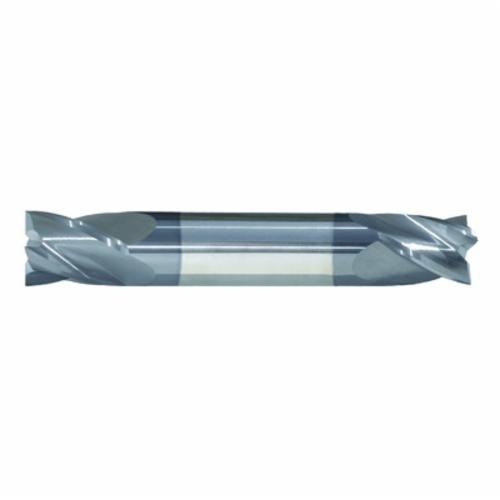

MORSE 91073 5895T Center Cutting Double End Regular Length End Mill, 7/32 in Dia Cutter, 9/16 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-3/8 in OAL, TiALN Coated
Invoice description:
End Mill 7/32 Crb Dbl En D 4fl 3/8 Shank
UPC: 686125910730
UNSPSC:
23242511
Manufacturer PN: 91073
$124.58 EA
Factory OrderEstimated to ship in 7 days
MORSE End Mill, Center Cutting Double End Regular Length, Series: 5895T, 7/32 in Cutter Dia, 3-3/8 in Overall Length, 9/16 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Round/Weldon Flat Shank, Solid Micrograin Carbide, TiALN Coated
Features
- 4 flute end mills with a greater core thickness offer increased tool strength and reduced tool defection also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
- Recommended for easy-to-machine materials including low alloy steels, non-ferrous materials and cast iron
- Center cutting end allows for plunge cutting like a drill into solid material
- Solid carbide offers excellent rigidity, hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life
- Titanium aluminum nitride coating increases surface hardness, wear resistance, heat resistance, chip flow and resists chip welding
Specifications
ApplicationPlunge Cutting and Slotting
Cutter Diameter7/32 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut9/16 in
MaterialSolid Micrograin Carbide
Number of Flutes4
Overall Length3-3/8 in
Series5895T
Shank Diameter3/8 in
Shank TypeRound/Weldon Flat
TypeCenter Cutting Double End Regular Length
Additional Information
Standards/ApprovalISO 9001:2008
Country of OriginUS
