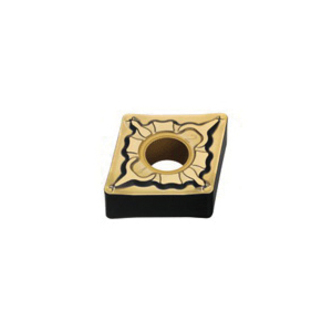

Mitsubishi Materials USA Corp MITSU 602394

Mitsubishi Materials USA Corp 602394 Turning Insert, ANSI Code: CNMG431LP MP3025, CNMG Insert, 431 Insert, Rhombic Shape, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: MP3025

Pack Size: 10
UNSPSC: 23242107
Manufacturer PN: 602394
$11.39 EA
Factory Order
Estimated to ship in 7 days
QTY:


Mitsubishi Materials USA Corp Turning Insert, CNMG Insert, 431 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, LP Chipbreaker, 0.016 in Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: MP3025, ANSI Code: CNMG431LP MP3025, ISO Code: CNMG120404-LP MP3025, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD Coated, For Use On: Steel

Specifications

ApplicationLight Cutting
ANSI CodeCNMG431LP MP3025
ChipbreakerLP
Corner Radius0.016 in
Cutting DirectionNeutral
FinishPVD Coated
For Use OnSteel
Hole Diameter5.16 mm
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size431
Insert StyleCNMG
ISO CodeCNMG120404-LP MP3025
Manufacturers GradeMP3025
MaterialCarbide
Relief Angle0 deg
ShapeRhombic
Thickness0.187 in
