Mitsubishi Materials USA Corp MITSU 108979

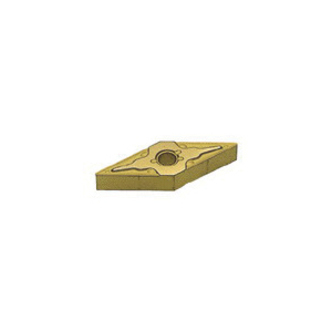

Mitsubishi Materials USA Corp 108979 Turning Insert, ANSI Code: VNMG331MA US735, VNMG Insert, 331 Insert, Rhombic Shape, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: US735
Invoice description:
Vnmg331ma Us735 Insert, 108979
Factory Order
Mitsubishi Materials USA Corp Turning Insert, VNMG Insert, 331 Insert, Rhombic, 3/8 in Inscribed Circle, 0.187 in Thickness, MA Chipbreaker, 0.016 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: US735, ANSI Code: VNMG331MA US735, ISO Code: VNMG160404-MA US735, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD Coated, For Use On: Stainless Steel
Specifications
ApplicationMedium Cutting
ANSI CodeVNMG331MA US735
ChipbreakerMA
Corner Radius0.016 in
Cutting DirectionNeutral
FinishCVD Coated
For Use OnStainless Steel
Hole Diameter0.15 in
Included Angle35 deg
Inscribed Circle3/8 in
Insert Size331
Insert StyleVNMG
ISO CodeVNMG160404-MA US735
Manufacturers GradeUS735
MaterialCarbide
Relief Angle0 deg
ShapeRhombic
Thickness0.187 in
