Mitsubishi Materials USA Corp MITSU 383929

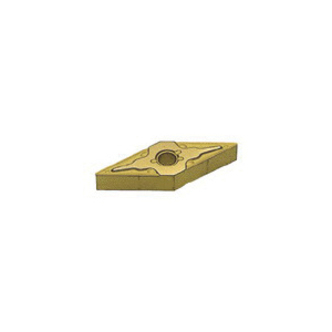

Mitsubishi Materials USA Corp 383929 Turning Insert, ANSI Code: VNMG331MA UE6110, VNMG Insert, 331 Insert, Rhombic Shape, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: UE6110

UNSPSC: 23242107
Manufacturer PN: 383929
$20.02 EA
Factory Order
Estimated to ship in 14 days
QTY:


Mitsubishi Materials USA Corp Turning Insert, VNMG Insert, 331 Insert, Rhombic, 3/8 in Inscribed Circle, 0.187 in Thickness, MA Chipbreaker, 0.016 in Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: UE6110, ANSI Code: VNMG331MA UE6110, ISO Code: VNMG160404-MA UE6110, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD Coated, For Use On: Steel

Specifications

ApplicationMedium Cutting
ANSI CodeVNMG331MA UE6110
ChipbreakerMA
Corner Radius0.016 in
Cutting DirectionNeutral
FinishCVD Coated
For Use OnSteel
Hole Diameter3.81 mm
Included Angle35 deg
Inscribed Circle3/8 in
Insert Size331
Insert StyleVNMG
ISO CodeVNMG160404-MA UE6110
Manufacturers GradeUE6110
MaterialCarbide
Relief Angle0 deg
ShapeRhombic
Thickness0.187 in
